Bug #369

Als tool:The display of alarm pic is different to the table

Added by gcyang over 3 years ago. Updated over 3 years ago.

Status:
Validated
Priority:
Minor
Assignee:
zzy
Start date:
02/10/2022
Project:
Processing Tool
Product:
Processing Tool
Observer:
gcyang
Observation Phase:
System validation
Visibility:
Internal
Scope:
Software
Site:
China_Atos
Sender:
Sender V&V
External Reference:
Validation version:
Als Tool 1.0.7
State justification:
Yanggc_20220218_validate_ok_Als Tool 1.0.7
Additional info.:
Delivered version:
Quote

Description

Als tool:The display of alarm pic is different to the table

1.When Processing the file 'A2LAA000 Alarm procedures for 220V DC power supply and distribution system (2LAA) Rev 002 02' (see attachment)
Expected Result： the alarm pic is same as the table
Actual Result： the alarm pic is '002' and the table is '002 02'(see attachment)

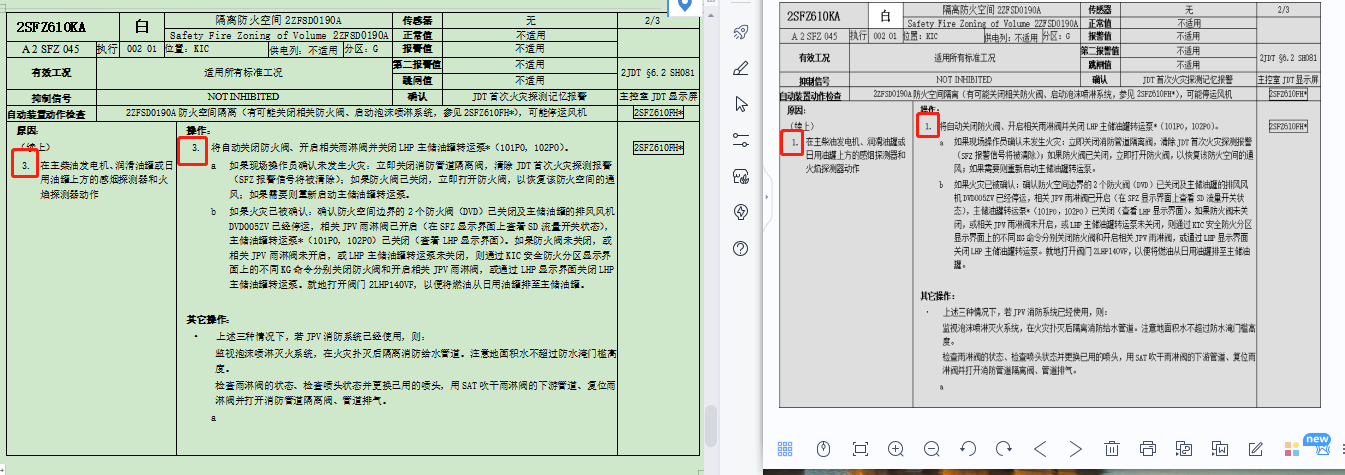

2.When Processing alarm(2SFZ610KA) in the file 'A2SFZ000 safety fire compartment system Rev002 01' (see attachment)
Expected Result：*the sequence number of operation in the second pic is next to the previous pic
*Actual Result： the sequence number begin at one（see attachment）

Yanggc_20220218_validate_ok_Als Tool 1.0.7

Edit attached files
A2KIC000 电站计算机信息和控制系统 Rev002 01.zip (692 KB) A2KIC000 电站计算机信息和控制系统 Rev002 01.zip gcyang, 02/10/2022 02:17 PM Delete
A2SFZ000 安全防火分区系统 Rev002 01.zip (407 KB) A2SFZ000 安全防火分区系统 Rev002 01.zip gcyang, 02/10/2022 02:18 PM Delete

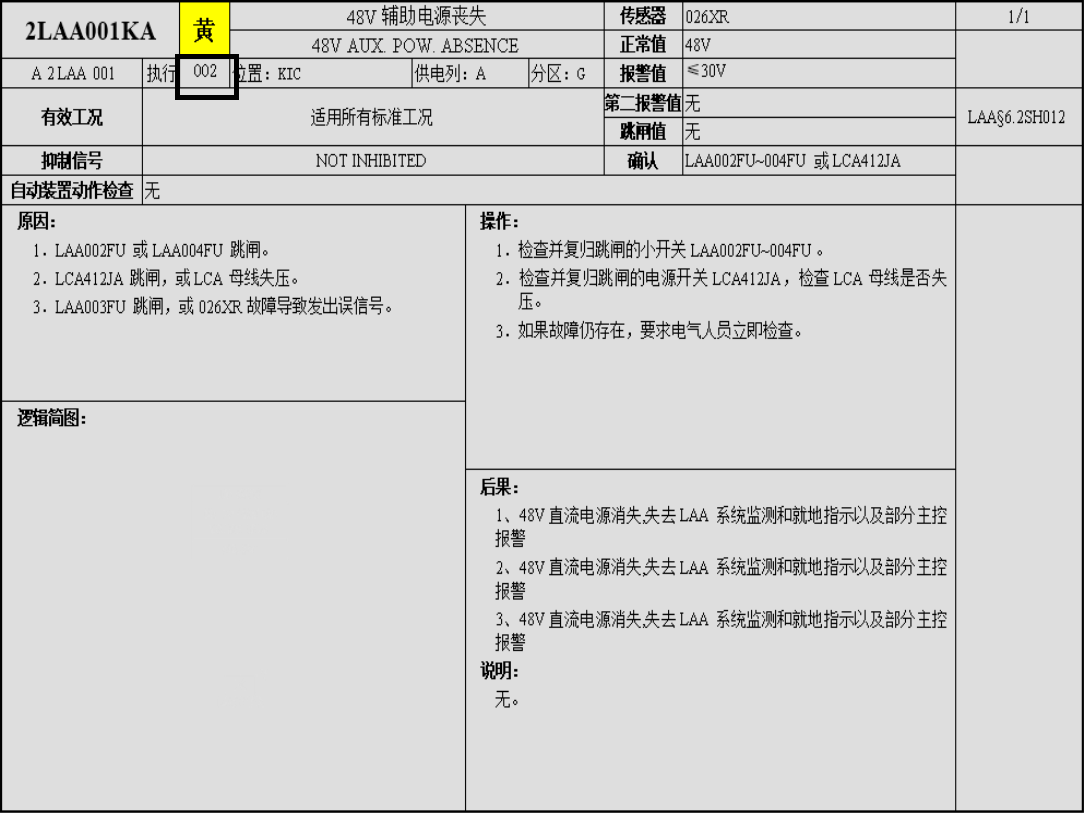

2LAA001KA.png (121 KB) 2LAA001KA.png gcyang, 02/10/2022 02:21 PM Delete

History

#1 Updated by hwyang over 3 years ago

  • Status changed from Reserved to Opened
  • Assignee changed from hwyang to zzy

#2 Updated by Anonymous over 3 years ago

  • Status changed from Opened to Completed

#3 Updated by gcyang over 3 years ago

  • Description updated (diff)
  • Detection Version changed from Als Tool 1.0 to Als Tool 1.0.3
  • Validation version set to Als Tool 1.0.7
  • State justification set to Yanggc_20220218_validate_ok_Als Tool 1.0.7

#4 Updated by gcyang over 3 years ago

  • Status changed from Completed to Validated
