Bug #383

Als Tool: Logic digram can not generate when processing some files.

Added by gcyang over 3 years ago. Updated over 3 years ago.

Status:
Validated
Priority:
Major
Assignee:
zzy
Start date:
02/18/2022
Project:
Processing Tool
Product:
Processing Tool
Observer:
gcyang
Observation Phase:
System validation
Visibility:
Internal
Scope:
Software
Site:
China_Atos
Sender:
Sender V&V
External Reference:
Validation version:
State justification:
Additional info.:
Zhouxuan_20220507_validate_ok_Als Tool 1.1.6
Delivered version:
Quote

Description

Als Tool: Logic diagram can not generate when processing some files. Folder extral_pic is empty.

When progressing the file (A2AHP000 高压给水加热器系统 REV002 00)(see attachment)
Expected Result：49 logic diagram should be generated.
Actual Result：the extral_pic is empty.

zhouxuan_20220308_reopen_v1.0.9
The generated PNG is not clear,
The logic diagram of importing ILV into DGS is not clear see bug1.jpg

zhouxuan_20220317_reopen_v1.1.0
The above problems still exist

zhouxuan_20220328_reopen_v1.1.1
1. The photo content is compressed,
2. The background color of the photo should not be white, but should be consistent with the background color of the alarm_sheet.

zhouxuan_20220414_reopen_v1.1.4

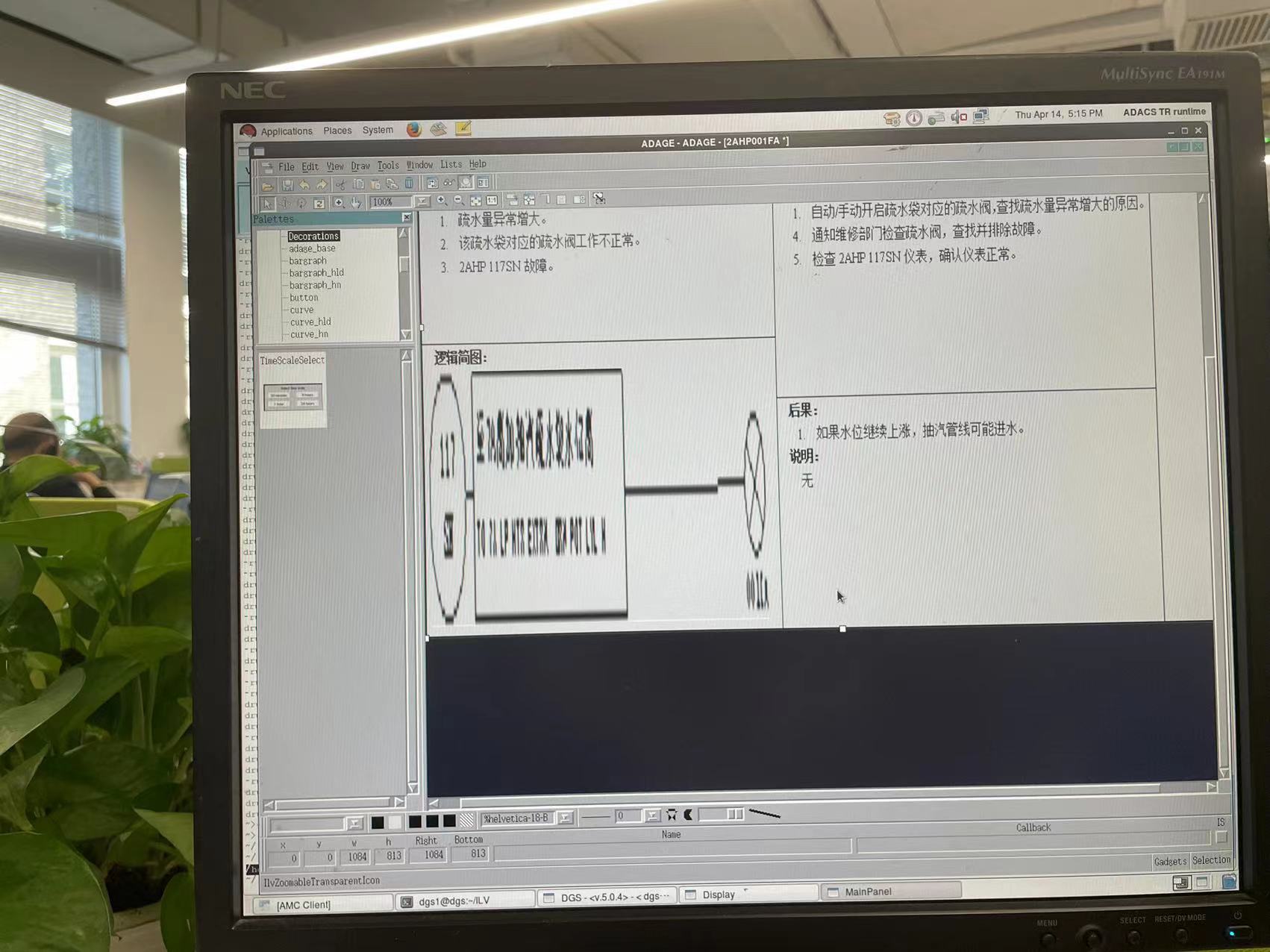

The above problems still exist. see bug2.jpg

Zhouxuan_20220507_validate_ok_Als Tool 1.1.6
