Bug #388

Als Tool: The size of the generated logic diagram picture is too large, resulting in the size of the logic diagram inserted on the DGS is too large.

Added by zhouxuan over 3 years ago. Updated over 3 years ago.

Status:

Validated

Priority:

Minor

Assignee:

zzy

Start date:

02/25/2022

Project:

Processing Tool

Product:

Processing Tool

Observer:

zhouxuan

Observation Phase:

System validation

Visibility:

Internal

Scope:

Software

Site:

China_Atos

Sender:

Sender V&V

External Reference:

Validation version:

State justification:

Additional info.:

Zhouxuan_20220414_validate_ok_Als Tool 1.1.4

Delivered version:

Quote

Description

The size of the generated logic diagram picture is too large, resulting in the size of the logic diagram inserted on the DGS is too large.

1. Execute the test document mode1.doc

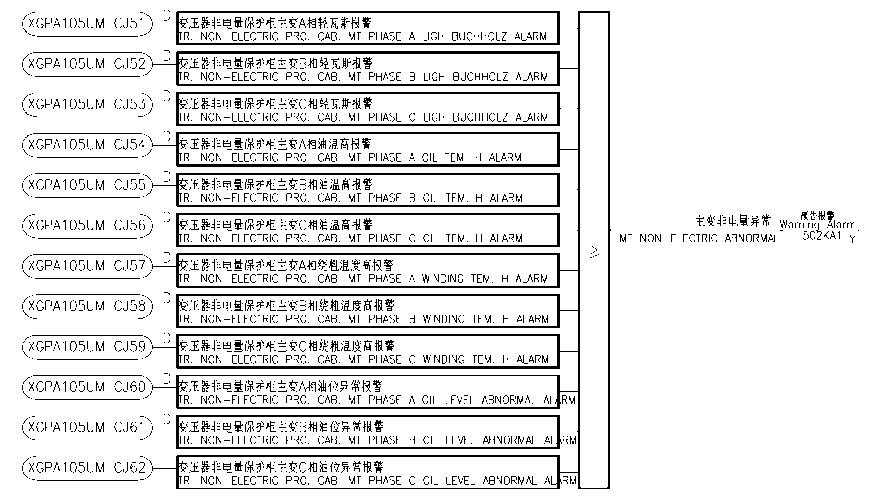

2. The logic of correct document generation is shown in the figure 1GPA502KA1_2_add0.png

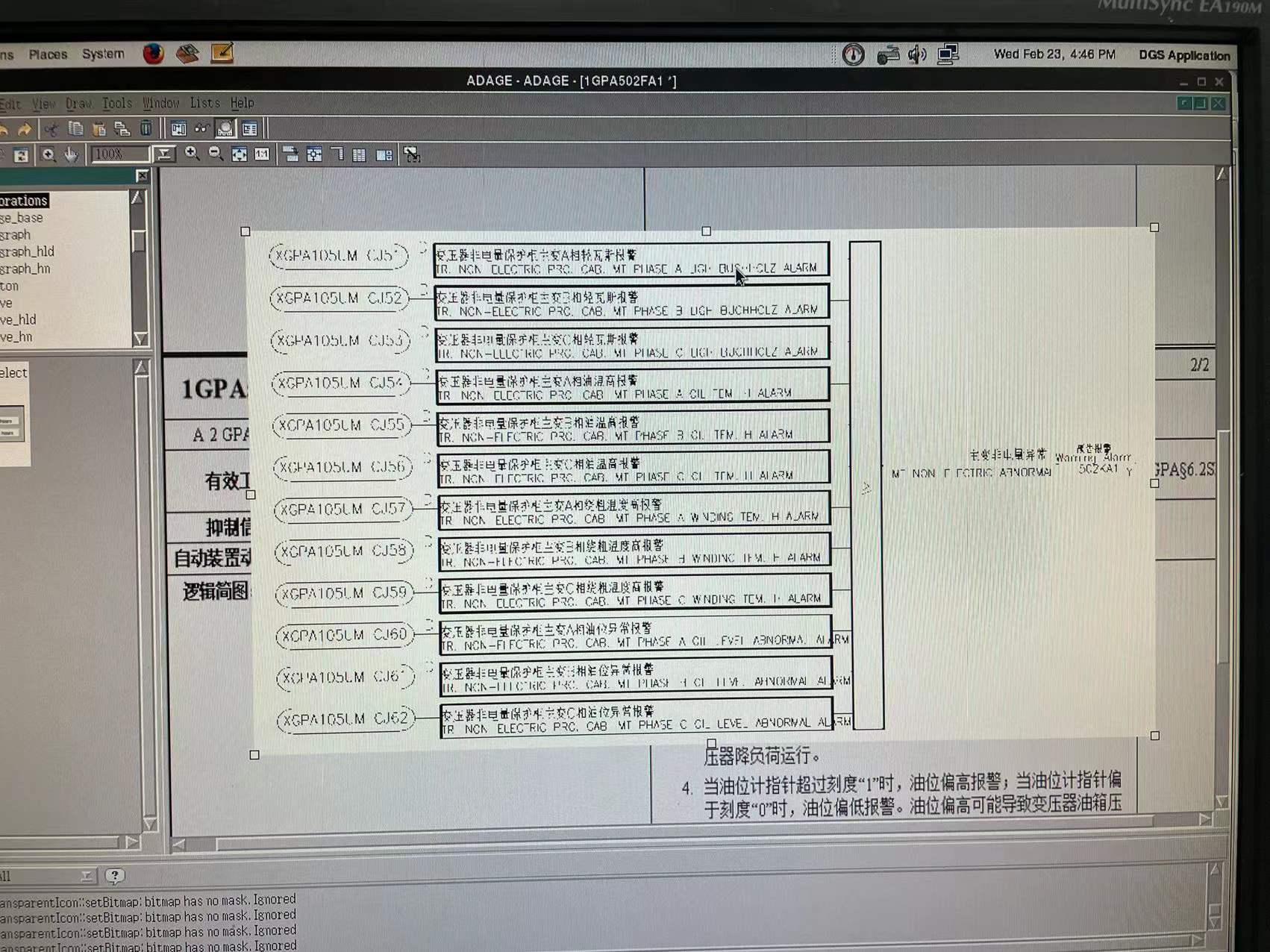

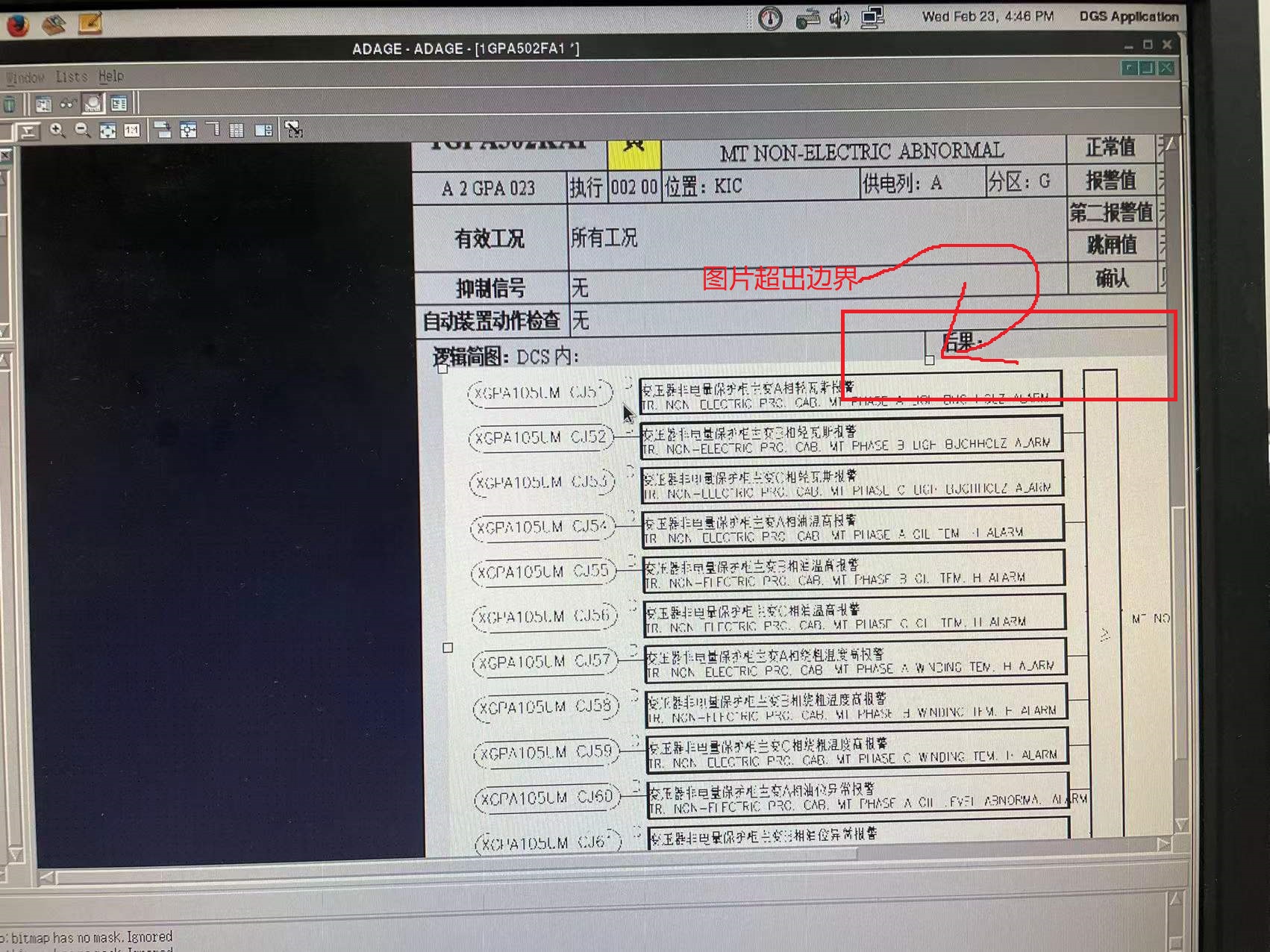

3. Insert the logic diagram into the display of DGS. The size of the logic diagram is too large, see model1.jpg mode2.jpg

20220317_zhouxuan_reopen_v1.1.0

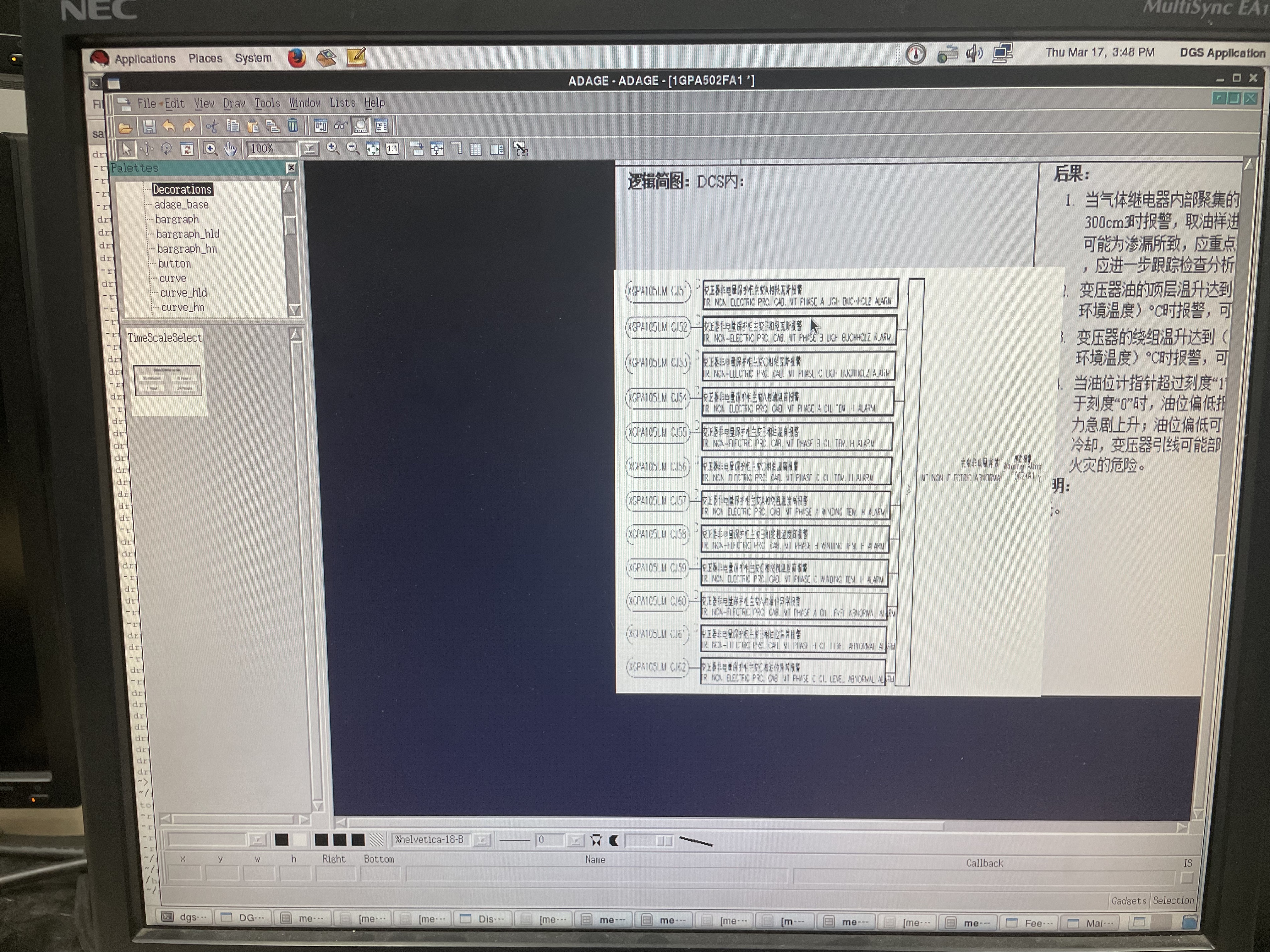

The above problems still exist， see bug388_1.jpg
Zhouxuan_20220414_validate_ok_Als Tool 1.1.4
20220328_zhouxuan_reopen_v1.1.1
The picture is not clear， see bug388_2.jpg

Edit attached files

mode1.doc (95 KB) mode1.doc	zhouxuan, 02/25/2022 11:54 AM	Delete
1GPA502KA1_2_add0.png (7.7 KB) 1GPA502KA1_2_add0.png	zhouxuan, 02/25/2022 11:54 AM	Delete
model1.jpg (317 KB) model1.jpg	zhouxuan, 02/25/2022 12:00 PM	Delete
model2.jpg (566 KB) model2.jpg	zhouxuan, 02/25/2022 12:00 PM	Delete
bug388_1.jpg (3.92 MB) bug388_1.jpg	zhouxuan, 03/17/2022 03:44 PM	Delete
bug388_2.jpg (4.8 MB) bug388_2.jpg	zhouxuan, 03/28/2022 05:41 PM	Delete
