Bug #392
Als Toos: Alarm sheets in no alarm colors or alarm colors beyond the boundary do not need to be generated.
Description
Als Toos: Alarm sheets in no alarm colors or alarm colors beyond the boundary do not need to be generated.
Situation1:
1.Execute attachment test42.doc
2.Some alarm sheet out of the color boundary not need to be created, such as 1CFI914KA,1CFI702KA,1RCP609KA,

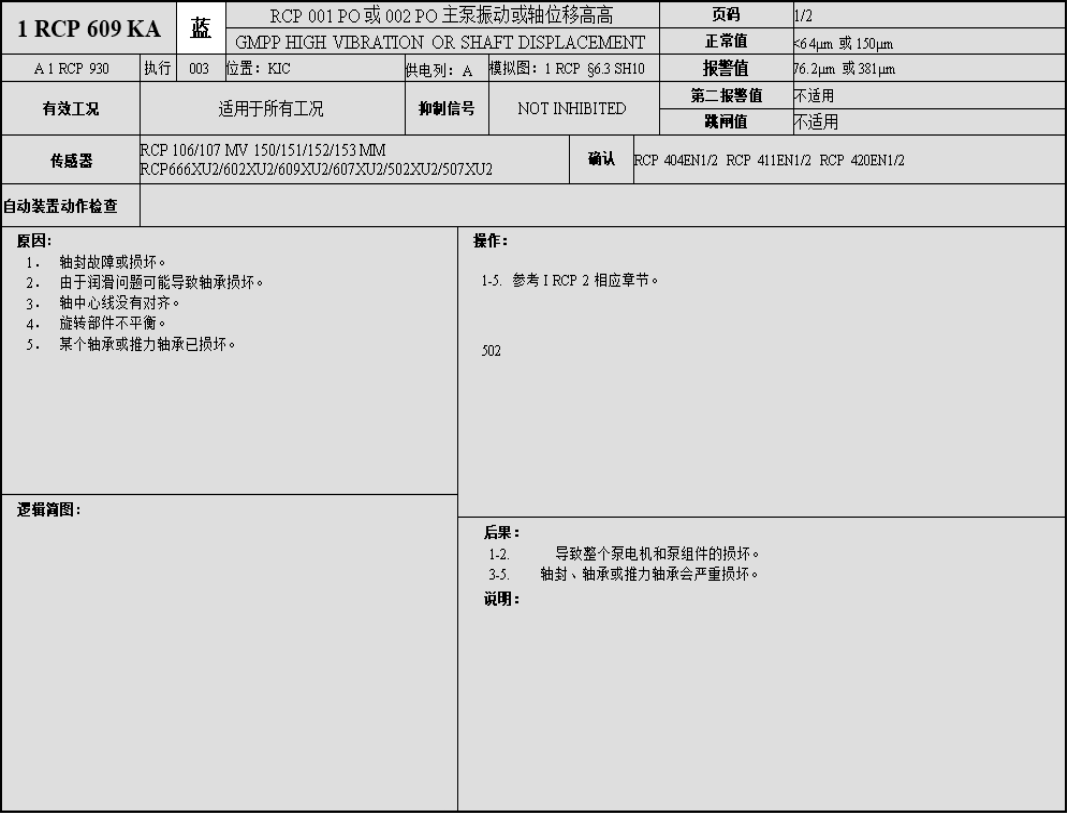

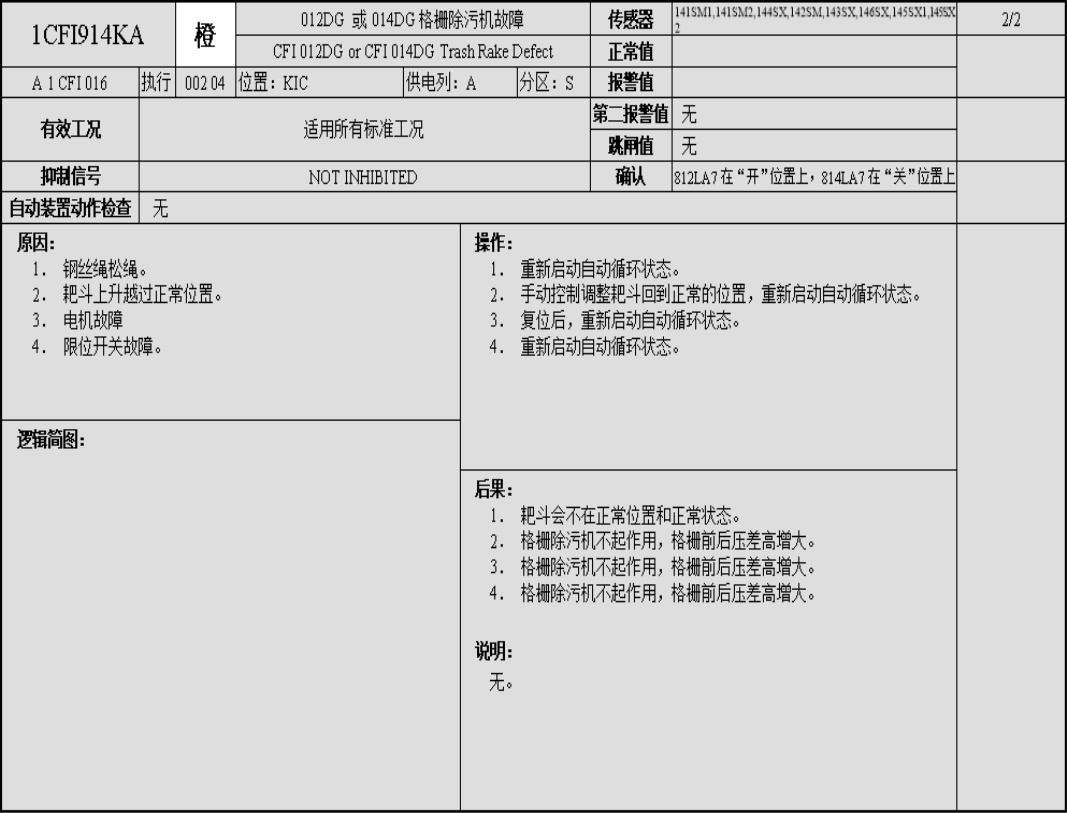

Actual results: these alarm sheets created, such as bug1.png bug2.png
Expected results: these alarm sheets not created.
Situation2:
1.Execute attachment test43.doc
2.Some alarm sheet the color is null not need to be created, such as 1CFI901KA1 and 1CFI913KA 1/2 1CFI914KA 2/2 1RCP609KA 1/2 2/2

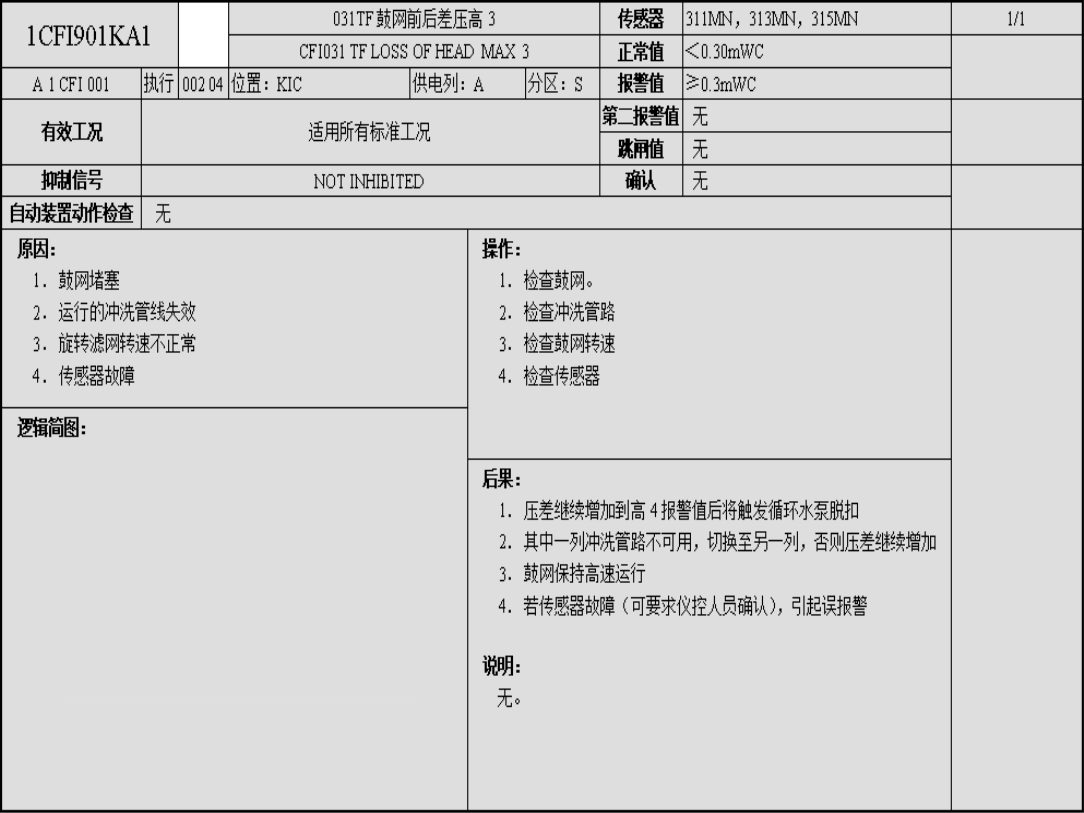

Actual results: these alarm sheets created, such as bug3.png
Expected results: these alarm sheets not to be created.
zhouxuan_20220316_reopen_v1.1.0
situation1:

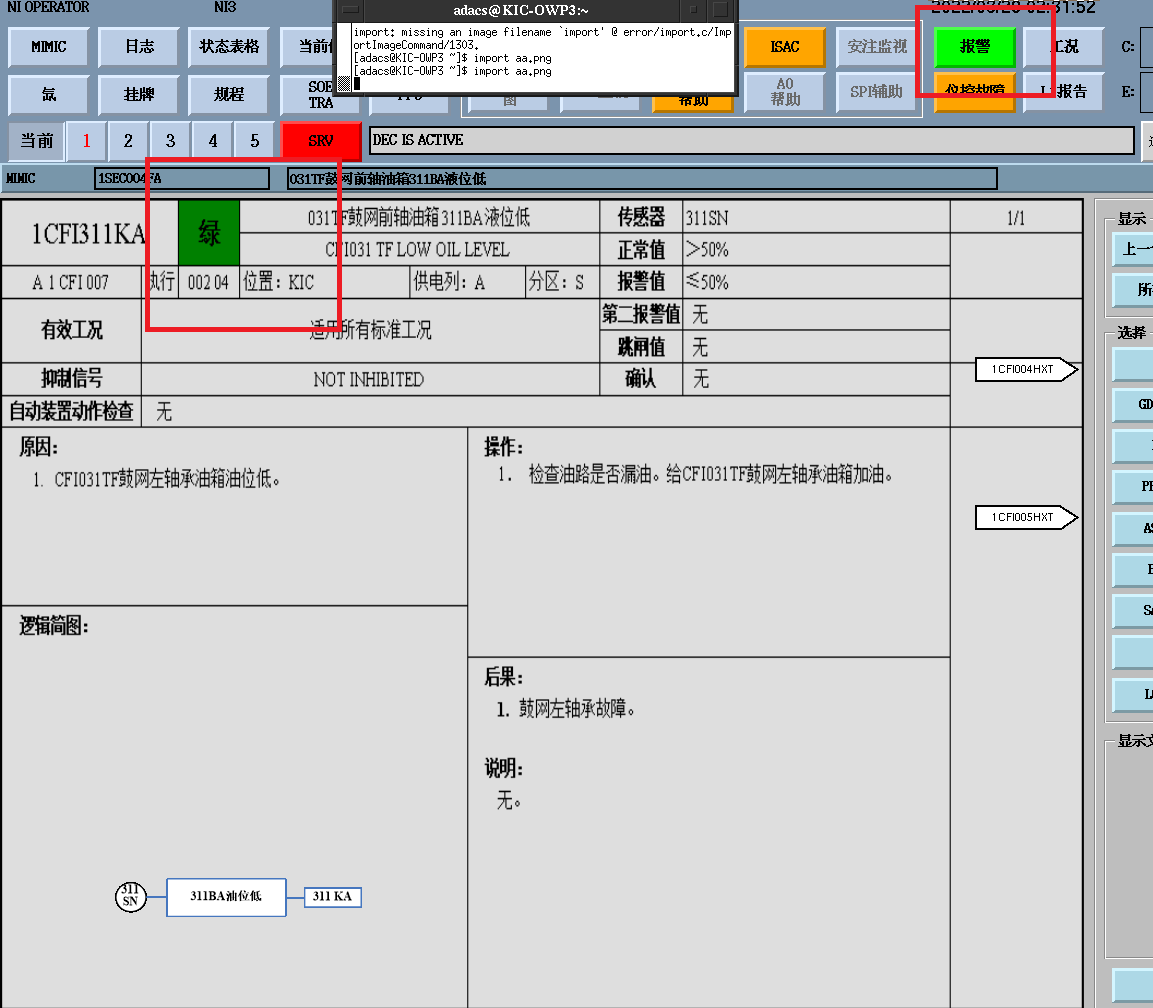

The color of the alarm card is green. the color is incorrect, press mode1.png settings.
situation2:pass
Zhouxuan_20220328_validate_ok_Als Tool 1.1.1
History
#1 Updated by zhouxuan over 3 years ago
- File test43.doc test43.doc added
- File bug3.png bug3.png added
- Subject changed from Als Toos: Alarm sheets in non alarm colors do not need to be generated. to Als Toos: Alarm sheets in no alarm colors or alarm colors beyond the boundary do not need to be generated.
- Description updated (diff)
#2 Updated by Anonymous over 3 years ago
- Status changed from Reserved to Completed
#3 Updated by zhouxuan over 3 years ago
- File mode1.jpg added
- Description updated (diff)
#4 Updated by zhouxuan over 3 years ago
- Description updated (diff)
- Status changed from Completed to Opened
#5 Updated by zhouxuan over 3 years ago
- File deleted (
mode1.jpg)
#6 Updated by zhouxuan over 3 years ago
#7 Updated by Anonymous over 3 years ago
- Status changed from Opened to Completed
#8 Updated by zhouxuan over 3 years ago
- Description updated (diff)
- Status changed from Completed to Validated
- Additional info. set to Zhouxuan_20220328_validate_ok_Als Tool 1.1.1
