Bug #393
Als Tool: The logic diagram will not be generated when the DEC alarm sheet reports an error in the log, but it has been generated
Start date:
03/07/2022
Project:
Processing Tool
Product:
Processing Tool
Observer:
Observation Phase:
System validation
Visibility:
Internal
Scope:
Software
Site:
China_Atos
Sender:
Sender V&V
External Reference:
Validation version:
State justification:
Additional info.:
Zhouxuan_20220317_validate_ok_Als Tool 1.1.0
Delivered version:
Description
The logic diagram will not be generated when the DEC alarm sheet reports an error in the log, but it has been generated
1.Run the test32.doc
2.The 1RCP449KA is DEC alarm sheet.
3.In the log:

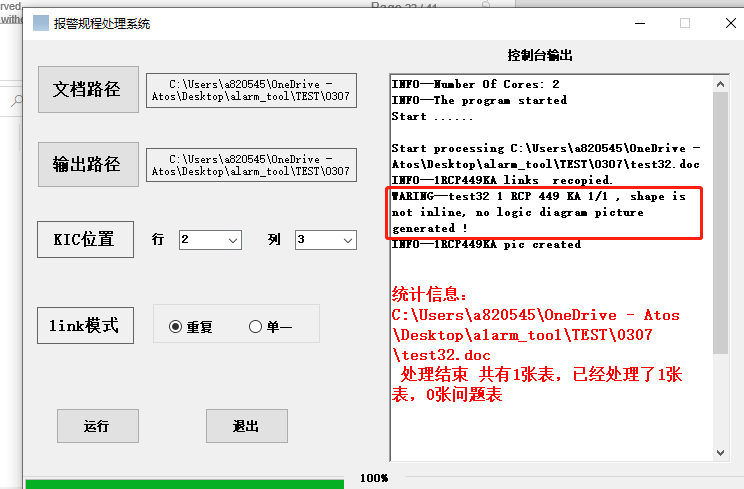

Actual results: the log appear ' [2022-03-07 15:22:49] WARING--test32 1 RCP 449 KA 1/1 , shape is not inline, no logic diagram picture generated !' see attachment bug1.png and then go to the EXTRAL_PIC folder there created 1RCP449KA_add0.png
Expected results: there are not error in the log, and the logic diagram is created correctly.
Zhouxuan_20220317_validate_ok_Als Tool 1.1.0
History
#1 Updated by zhouxuan over 3 years ago
- Subject changed from Als Tool: The logic diagram will not be generated when the DEC alarm card reports an error in the log, but it has been generated to Als Tool: The logic diagram will not be generated when the DEC alarm sheet reports an error in the log, but it has been generated
- Description updated (diff)
#2 Updated by Anonymous over 3 years ago
- Status changed from Reserved to Completed
#3 Updated by zhouxuan over 3 years ago
- Description updated (diff)
- Status changed from Completed to Validated
- Additional info. set to Zhouxuan_20220317_validate_ok_Als Tool 1.1.0
