Bug #421
Als Tool: The logic diagram is enlarged and the background color is incorrect
Start date:
03/29/2022
Project:
Processing Tool
Product:
Processing Tool
Observer:
Observation Phase:
System validation
Visibility:
Internal
Scope:
Software
Site:
China_Atos
Sender:
Sender V&V
External Reference:
Validation version:
State justification:
Additional info.:
Zhouxuan_20220507_validate_ok_Als Tool 1.1.6
Delivered version:
Description
The logic diagram is enlarged and the background color is incorrect
1.1. Execute test documents

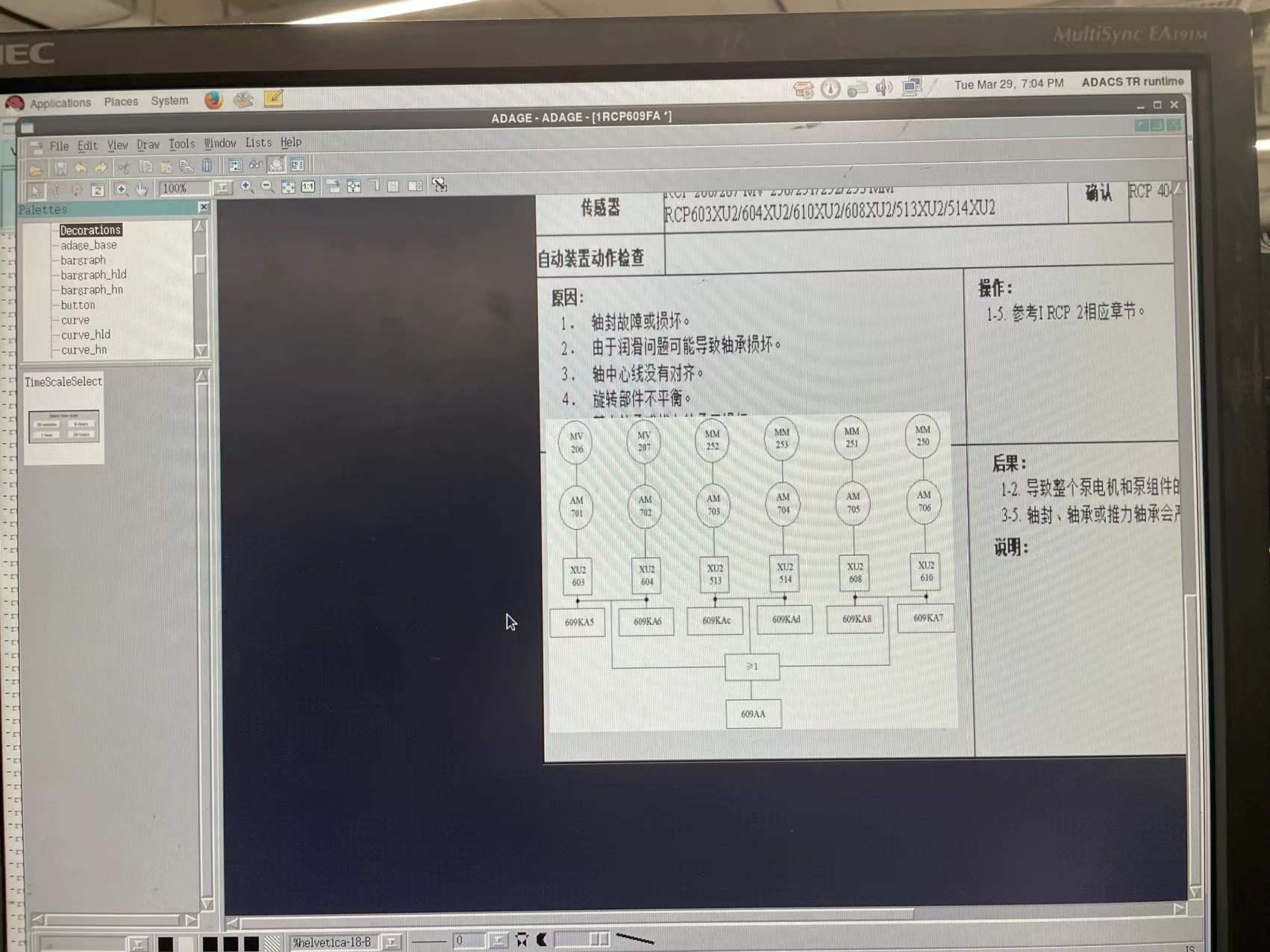

2. Actual results: the generated logic diagrams are enlarged, the background color is white, and some are blocked after enlargement
.see bug1.jpg,bug2.jpg

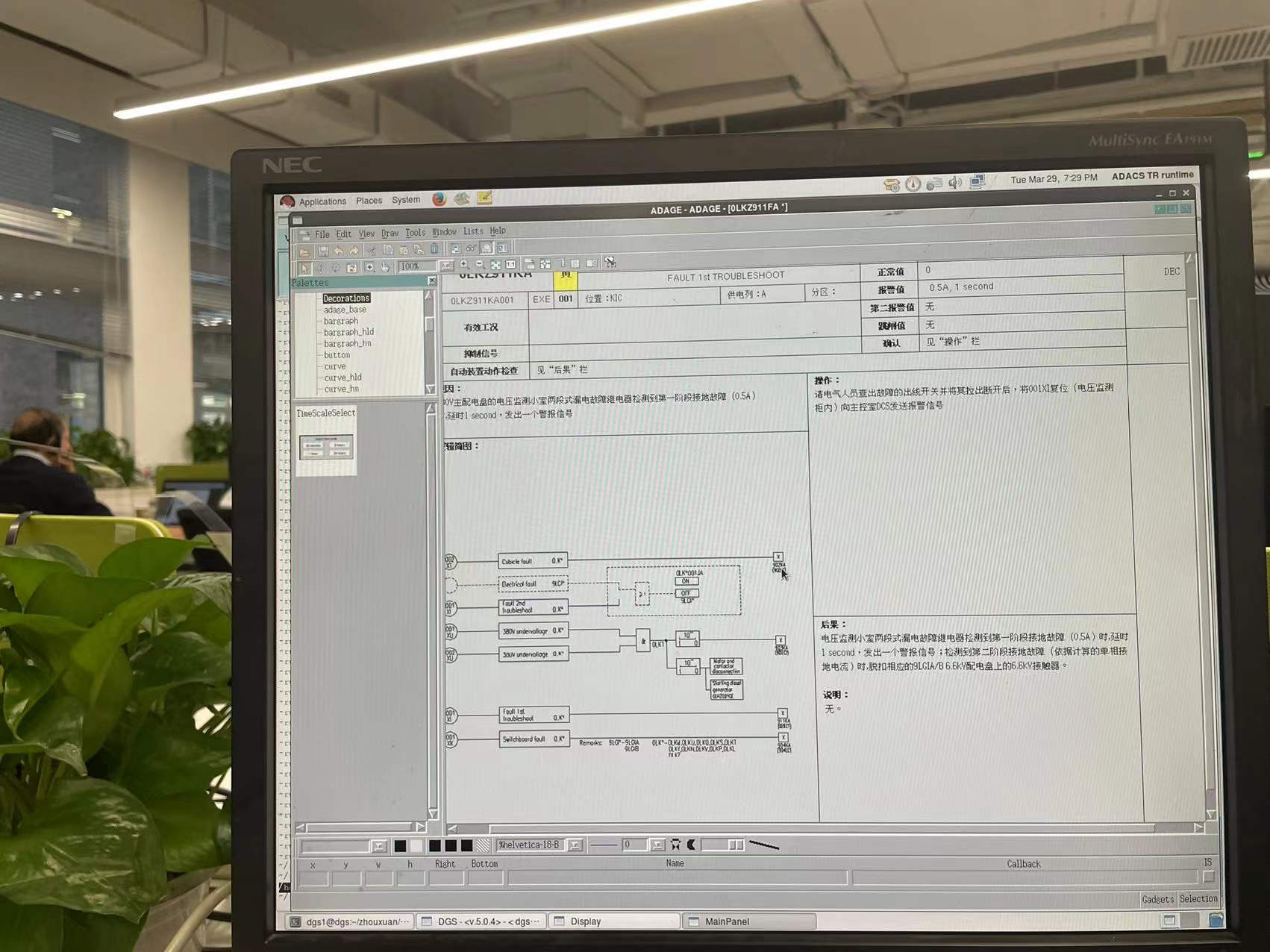

3. Expected result: the generated logic diagram is clearly displayed in normal proportion, and the background color is consistent with the color of the alarm card, see mode1.jpg
zhouxuan_reopen_20220414_Als_Tool V1.1.4
The enlarged size of the background image is too large, resulting in unsightly appearance. Please enlarge it reasonably
Zhouxuan_20220507_validate_ok_Als Tool 1.1.6
History
#1 Updated by Anonymous over 3 years ago
- Status changed from Reserved to Completed
#2 Updated by zhouxuan over 3 years ago
- Description updated (diff)
- Status changed from Completed to Opened
#3 Updated by Anonymous over 3 years ago
- Status changed from Opened to Completed
#4 Updated by zhouxuan over 3 years ago
- Description updated (diff)
- Status changed from Completed to Validated
- Additional info. set to Zhouxuan_20220507_validate_ok_Als Tool 1.1.6
