Bug #455

Als Tool: The generated logic diagram is incorrect

Added by zhouxuan over 3 years ago. Updated over 3 years ago.

Status:
Validated
Priority:
Minor
Assignee:
zzy
Start date:
05/09/2022
Project:
Processing Tool
Product:
Processing Tool
Observer:
zhouxuan
Observation Phase:
System validation
Visibility:
Internal
Scope:
Software
Site:
China_Atos
Sender:
Sender V&V
External Reference:
Validation version:
State justification:
Additional info.:
Zhouxuan_20220630_validate_ok_1.2.5
Delivered version:
Quote

Description

The generated logic diagram is incorrect

Als Tool:When file is too much, The generated alarm card photo is blank

When processing the files in 'Alarmtestfile'(see at the sftp(user:support,catalogue:/ALS script))

1. The attached documents are visible

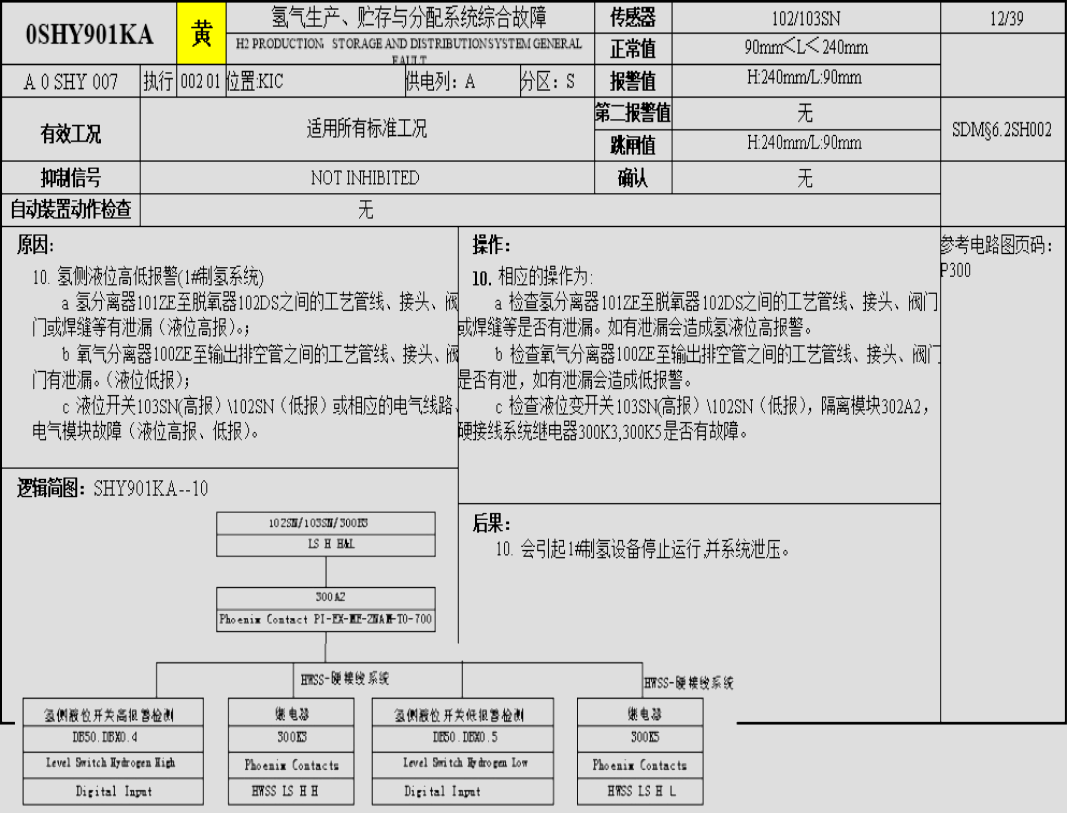

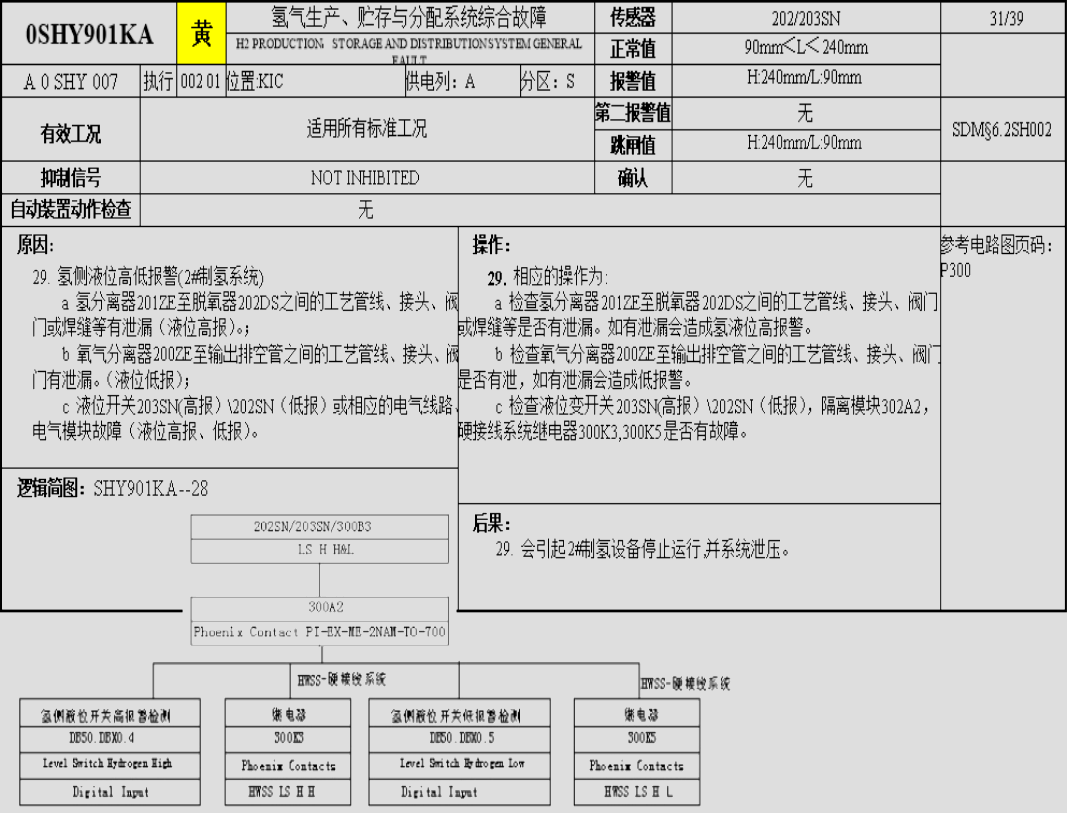

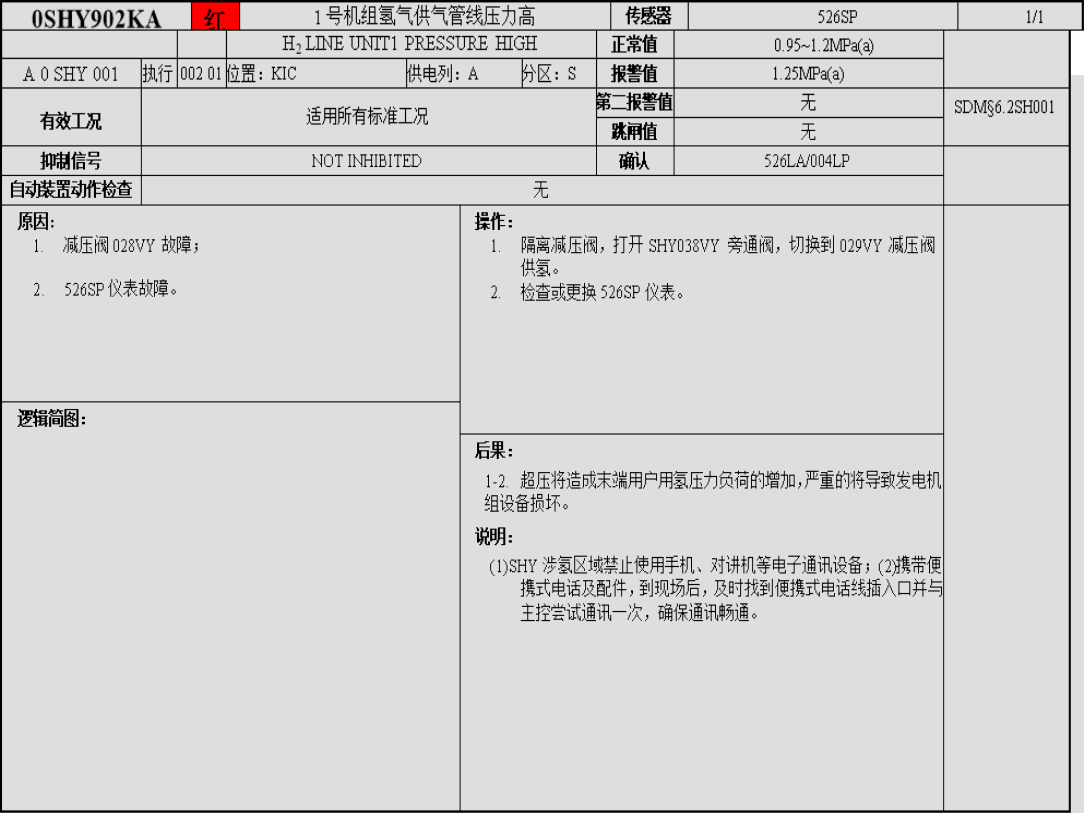

2. It is found that the alarm card picture generated by the attachment document is incorrect and see bu1.png bug2.png bug3.png

The above issue still exist.

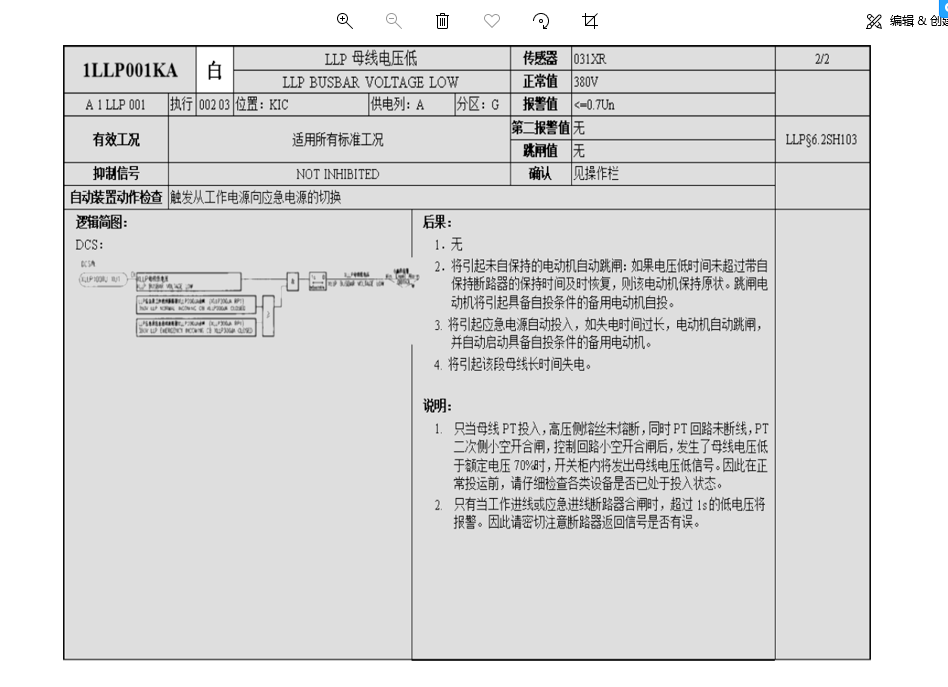

see 1LLP001KA and 'A1LLP000 常规岛380V应急设备厂用电系统 Rev 002 03.doc'

zhouxuan_reopen_20220608_1.2.0
逻辑简图处超出范围边界，见
A1REA000 反应堆硼水补给系统 Rev002 01--》 1REA402KA1

zhouxuan_reopen_20220621_1.2.2
仍然有逻辑简图超出范围边界
见A1LKF000 常规岛380／220V常备设备厂用系统报警规程 Rev 002 01 1LKF003KA3 2/2

Zhouxuan_20220630_validate_ok_1.2.5

Edit attached files
HN0-SHY-TPOPAR-0001(A0SHY000) 氢气生产、贮存与分配系统 Rev003.doc (2.87 MB) HN0-SHY-TPOPAR-0001(A0SHY000) 氢气生产、贮存与分配系统 Rev003.doc zhouxuan, 05/09/2022 05:18 PM Delete
bug1.png (172 KB) bug1.png zhouxuan, 05/09/2022 05:18 PM Delete
bug2.png (172 KB) bug2.png zhouxuan, 05/09/2022 05:18 PM Delete
bug3.png (91.8 KB) bug3.png zhouxuan, 05/09/2022 05:19 PM Delete
HN9-KRT-TPOPAR-0001（A9KRT000） 电厂辐射监测系统 REV003.doc (1.21 MB) HN9-KRT-TPOPAR-0001（A9KRT000） 电厂辐射监测系统 REV003.doc zhouxuan, 05/11/2022 03:28 PM Delete
bug4.png (104 KB) bug4.png zhouxuan, 05/11/2022 03:29 PM Delete
1LLP001KA.png (153 KB) 1LLP001KA.png zhouxuan, 05/17/2022 03:32 PM Delete
A1LLP000 常规岛380V应急设备厂用电系统 Rev 002 03.doc (1.03 MB) A1LLP000 常规岛380V应急设备厂用电系统 Rev 002 03.doc zhouxuan, 05/17/2022 03:34 PM Delete

History

#2 Updated by zhouxuan over 3 years ago

#3 Updated by hwyang over 3 years ago

  • Status changed from Reserved to Opened
  • Assignee changed from hwyang to zzy

#4 Updated by Anonymous over 3 years ago

  • Status changed from Opened to Completed

#5 Updated by zhouxuan over 3 years ago

  • Description updated (diff)
  • Status changed from Completed to Validated
  • Additional info. set to Zhouxuan_20220516_validate_ok_Als Tool 1.1.7

#6 Updated by zhouxuan over 3 years ago

#7 Updated by Anonymous over 3 years ago

  • Status changed from Opened to Completed
Quote

see path https://117.78.0.17:8443/svn/gz/tool/Alarm_sheet/tags/1.1.9

The position has been moved, The complex logic diagram is not saved separately, only a simple screenshot is given, and a warning prompt is given

#8 Updated by zhouxuan over 3 years ago

  • Description updated (diff)
  • Status changed from Completed to Opened

#9 Updated by Anonymous over 3 years ago

  • Status changed from Opened to Completed

#10 Updated by zhouxuan over 3 years ago

  • Description updated (diff)
  • Status changed from Completed to Opened

#11 Updated by Anonymous over 3 years ago

  • Status changed from Opened to Completed

#12 Updated by zhouxuan over 3 years ago

  • Description updated (diff)
  • Status changed from Completed to Validated
  • Additional info. set to Zhouxuan_20220630_validate_ok_1.2.5
