Bug #466

Als Tool： Incorrect color display of alarm sheet

Added by zhouxuan over 3 years ago. Updated over 3 years ago.

Status:

Validated

Priority:

Minor

Assignee:

hwyang

Start date:

05/17/2022

Project:

Processing Tool

Product:

Processing Tool

Observer:

zhouxuan

Observation Phase:

System validation

Visibility:

Internal

Scope:

Software

Site:

China_Atos

Sender:

Sender V&V

External Reference:

Validation version:

State justification:

Additional info.:

Zhouxuan_20220621_validate_ok_Als Tool 1.2.2

Delivered version:

Quote

Description

Incorrect color display of alarm sheet
1.Run the attachment

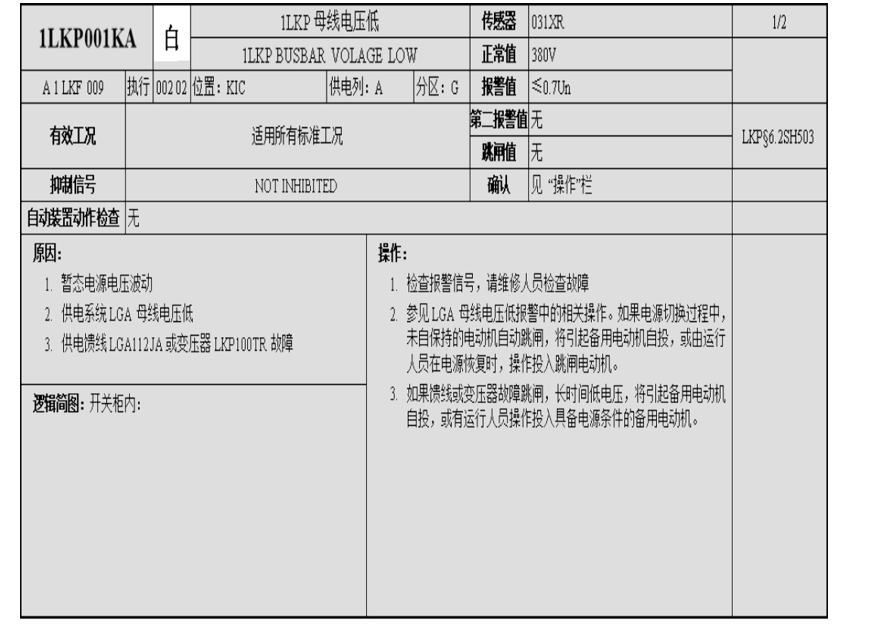

2.The alarm sheet 1LKP001KA color is not correct. The word in 'Alarmtestfile'(see at the sftp(user:support,catalogue:/ALS script)) named 'A1LKF000 常规岛380／220V常备设备厂用系统报警规程 Rev 002 02.doc'

There are still pictures with the above problems

zhouxuan_reopen_20220608_1.2.0
问题在其他文档仍有
A0LHF000 6.0kV厂区附加交流电源系统 Rev 002 00 0LHF702KA 1/1
A1ETY000 安全壳内大气监测系统 Rev002 00 1ETY035KA 1/1
A1ETY000 安全壳内大气监测系统 Rev002 00 1ETY033KA 1/1
A1ETY000 安全壳内大气监测系统 Rev002 00 1ETY109KA 1/1
A1ETY000 安全壳内大气监测系统 Rev002 01 1ETY035KA 1/1
A1ETY000 安全壳内大气监测系统 Rev002 01 1ETY033KA 1/1
A1ETY000 安全壳内大气监测系统 Rev002 01 1ETY109KA 1/1
A1LHQ000 6.0KV交流应急电源系统 REV002 01 1LHQ701KA 1/1
A1LHQ000 6.0KV交流应急电源系统 REV002 02 1LHQ701KA 1/1

Zhouxuan_20220621_validate_ok_Als Tool 1.2.2
