Bug #467
Als Tool: Some logic diagrams generated following the alarm sheet are not clear
Description
Some logic diagrams generated following the alarm card are not clear
Some documents such as 'A1LKF000 常规岛380／220V常备设备厂用系统报警规程 Rev 002 01.doc' in 'Alarmtestfile'(see at the sftp(user:support,catalogue:/ALS script))

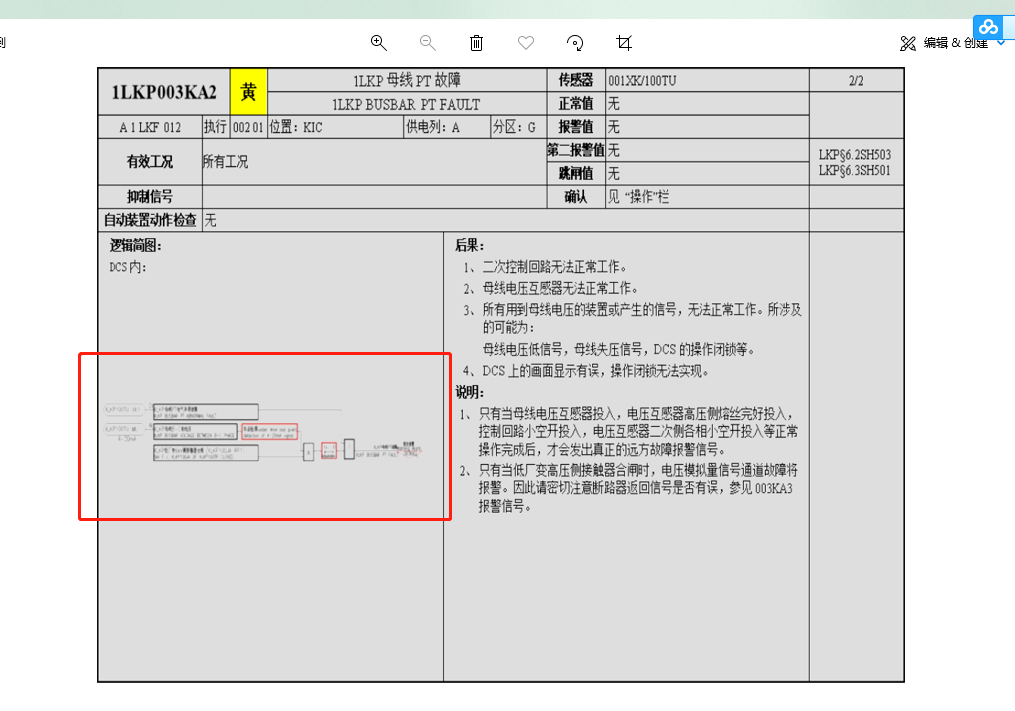

The logic diagrams is not clear. the attachment for an example
仍然有很多单独分开的逻辑简图不清晰，见A0LBK000 0LBK.0LNK系统报警规程 Rev 002 02.doc，文档中一些逻辑简图清晰，生成的明显不清晰。
zhouxuan_reopen_20220609_1.2.0
上述问题仍存在，可见 A1GSE000 汽机保护系统报警规程 2.1.doc
一些整理的不清晰的可见附件mode.xlsx，由于附件是在1.2.0更早的版本上测试的，所以有些逻辑简图在新的版本上已经清晰，请注意
yangguangcai_reopen_20220712_1.2.6.7
逻辑简图仍然不清晰
Zhouxuan_20220713_validate_ok_1.2.7
不清晰的逻辑见图都有了warning
History
#1 Updated by Anonymous over 3 years ago
- Status changed from Reserved to Completed
see path https://117.78.0.17:8443/svn/gz/tool/Alarm_sheet/tags/1.1.9
The complex logic diagram is not saved separately, only a simple screenshot is given, and a warning prompt is given
#2 Updated by zhouxuan over 3 years ago
- File A0LBK000 0LBK.0LNK系统报警规程 Rev 002 02.DOC A0LBK000 0LBK.0LNK系统报警规程 Rev 002 02.DOC added
- Description updated (diff)
- Status changed from Completed to Opened
#3 Updated by hwyang over 3 years ago
- Assignee changed from hwyang to zzy
#4 Updated by Anonymous over 3 years ago
- Status changed from Opened to Completed
see path https://117.78.0.17:8443/svn/gz/tool/Alarm_sheet/tags/1.2.0
This logic diagram is bold, but it may cause other document logic diagrams to become blurred after being bolded
#5 Updated by zhouxuan over 3 years ago
- Description updated (diff)
- Status changed from Completed to Opened
#7 Updated by Anonymous over 3 years ago
- Status changed from Opened to Completed
#8 Updated by gcyang over 3 years ago
- Description updated (diff)
- Status changed from Completed to Opened
#9 Updated by zhouxuan over 3 years ago
- Description updated (diff)
- Status changed from Opened to Validated
- Additional info. set to Zhouxuan_20220713_validate_ok_1.2.7
