Bug #472

Als Tool: The two alarm sheet are combined to form one

Added by zhouxuan over 3 years ago. Updated over 3 years ago.

Status:
Validated
Priority:
Minor
Assignee:
zzy
Start date:
05/23/2022
Project:
Processing Tool
Product:
Processing Tool
Observer:
zhouxuan
Observation Phase:
System validation
Visibility:
Internal
Scope:
Software
Site:
China_Atos
Sender:
Sender V&V
External Reference:
Validation version:
State justification:
Additional info.:
Zhouxuan_20220622_validate_ok_Als Tool 1.2.2
Delivered version:
Quote

Description

The two alarm cards are combined to form one
1.The word in 'Alarmtestfile'(see at the sftp(user:support,catalogue:/ALS script)) named ’A1APA000 电动主给水泵系统002 05'

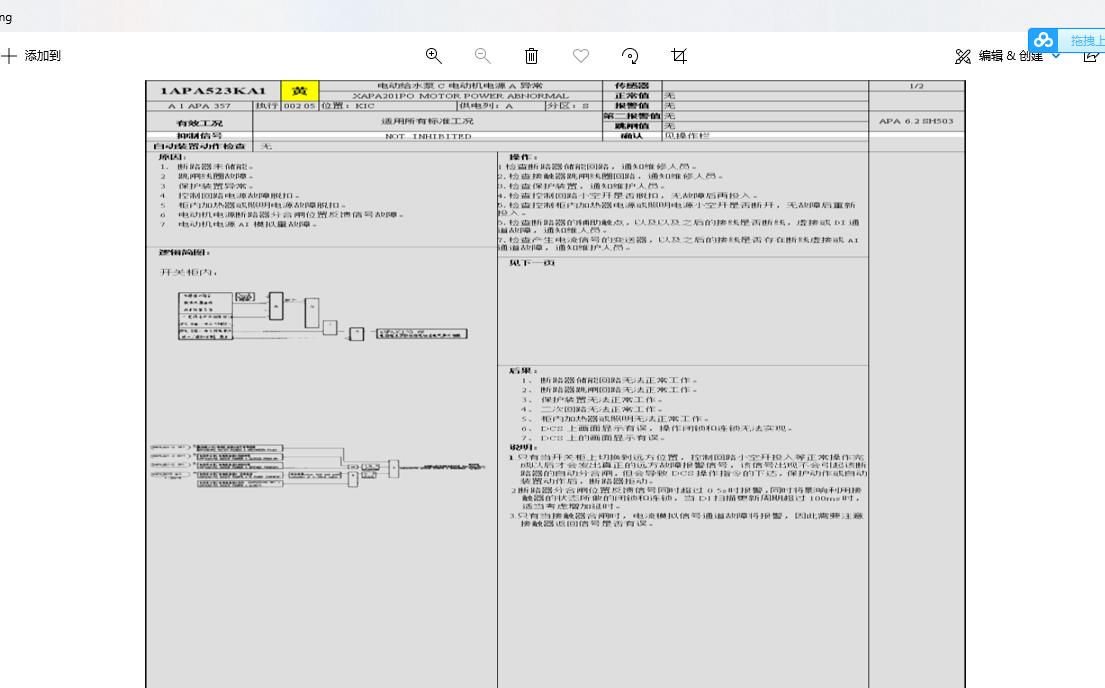

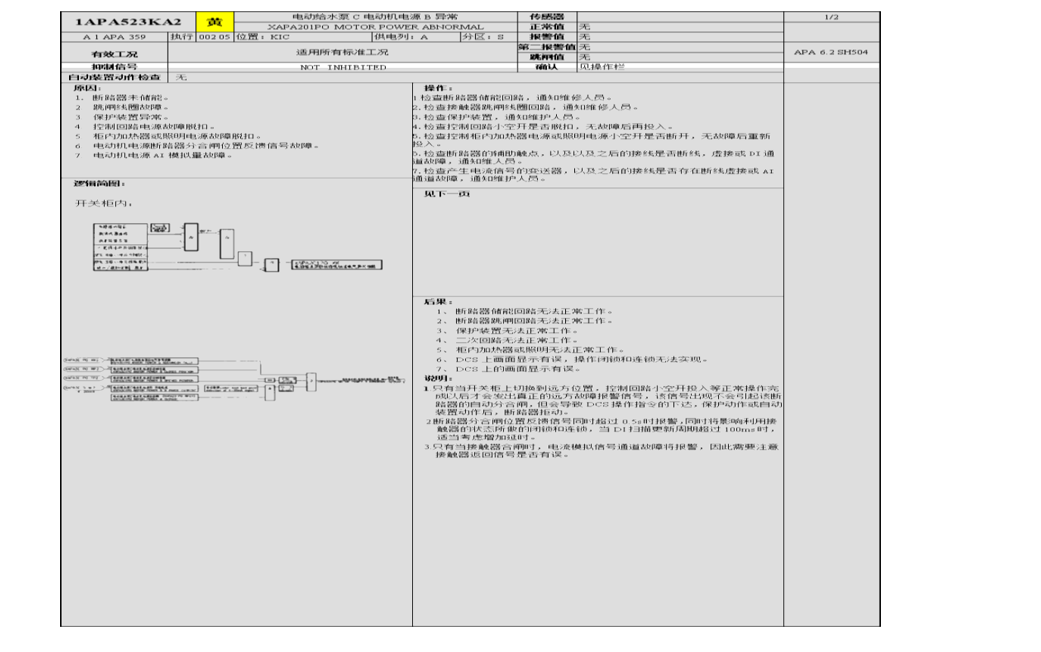

2.The alarm sheet 1APA523KA1 1/2 and 1APA523KA2 1/2 have two. and they are generated the one .see bug1.png and bug2.png

The above issues still exist.

zhouxuan_20220608_reopen_1.2.0
The above issues still exist.

Zhouxuan_20220622_validate_ok_Als Tool 1.2.2(这个问题因为出现的多余的另一张不能被识别ID，所以只能是这样，具体需用户手动修改)

Edit attached files
bug1.png (185 KB) bug1.png zhouxuan, 05/23/2022 11:45 AM Delete
bug2.png (145 KB) bug2.png zhouxuan, 05/23/2022 11:45 AM Delete

History

#1 Updated by zhouxuan over 3 years ago

  • Subject changed from Als Tool: The two alarm sheet are combined to form one to Als Tool: The two alarm sheet are combined to form one(1.1.7)

#2 Updated by admin over 3 years ago

  • Status changed from Reserved to Opened
  • Assignee changed from hwyang to zzy

#3 Updated by Anonymous over 3 years ago

  • Status changed from Opened to Completed
Quote

see path https://117.78.0.17:8443/svn/gz/tool/Alarm_sheet/tags/1.1.9

Alarm cards with multiple logic diagrams have been added with warnings

#4 Updated by zhouxuan over 3 years ago

  • Description updated (diff)
  • Status changed from Completed to Opened

#5 Updated by zhouxuan over 3 years ago

  • Subject changed from Als Tool: The two alarm sheet are combined to form one(1.1.7) to Als Tool: The two alarm sheet are combined to form one(1.1.9)

#6 Updated by zhouxuan over 3 years ago

  • Subject changed from Als Tool: The two alarm sheet are combined to form one(1.1.9) to Als Tool: The two alarm sheet are combined to form one

#7 Updated by Anonymous over 3 years ago

  • Status changed from Opened to Completed
Quote

see path https://117.78.0.17:8443/svn/gz/tool/Alarm_sheet/tags/1.2.0

There is a problem with the table format of the document, and a corresponding warning has been given

#8 Updated by zhouxuan over 3 years ago

  • Description updated (diff)
  • Status changed from Completed to Opened

#9 Updated by Anonymous over 3 years ago

  • Status changed from Opened to Completed

#10 Updated by zhouxuan over 3 years ago

  • Description updated (diff)
  • Status changed from Completed to Validated
  • Additional info. set to Zhouxuan_20220622_validate_ok_Als Tool 1.2.2

#11 Updated by zhouxuan over 3 years ago

  • Description updated (diff)
