Bug #483

Als Tool :After the logic diagram is generated, some parts are blacked out

Added by zhouxuan over 3 years ago. Updated over 3 years ago.

Status:
Validated
Priority:
Major
Assignee:
zzy
Start date:
06/02/2022
Project:
Processing Tool
Product:
Processing Tool
Observer:
zhouxuan
Observation Phase:
System validation
Visibility:
Internal
Scope:
Software
Site:
China_Atos
Sender:
Sender V&V
External Reference:
Validation version:
State justification:
Additional info.:
Zhouxuan_20220622_validate_ok_Als Tool 1.2.2
Delivered version:
Quote

Description

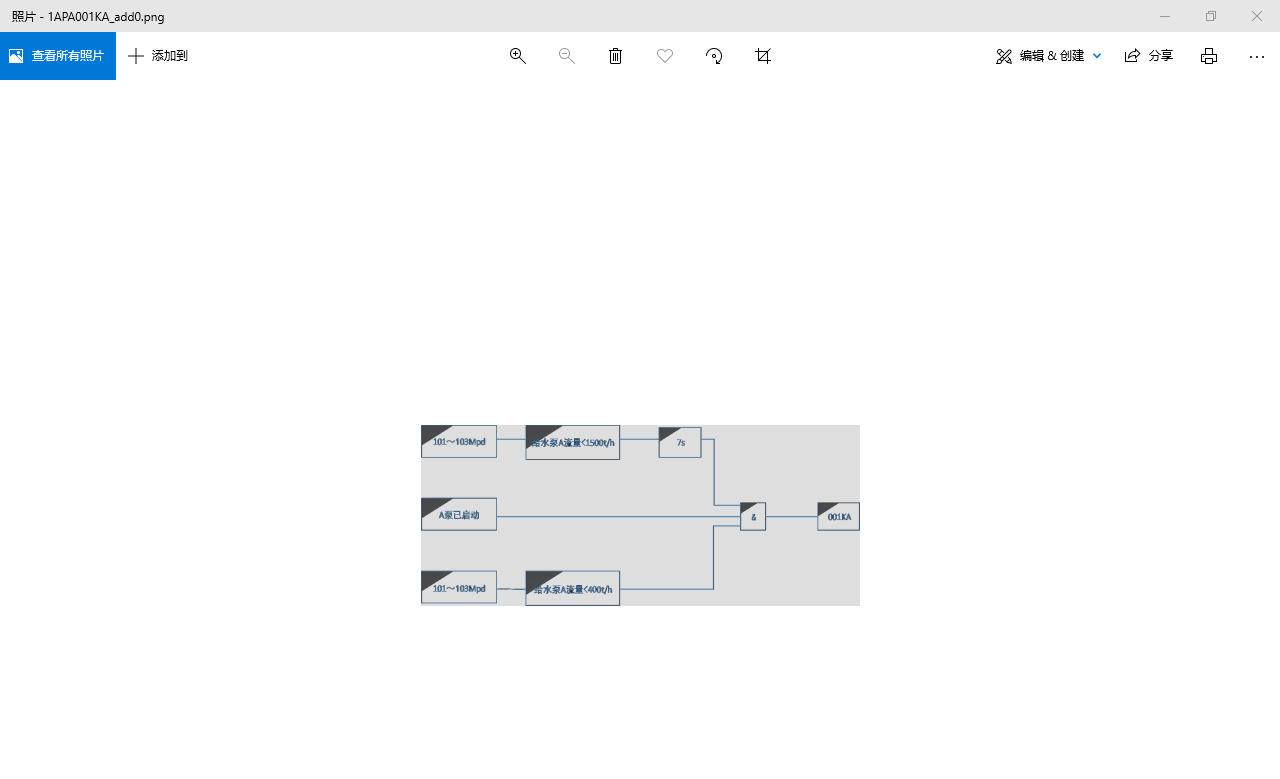

After the logic diagram is generated, some parts are blacked out
1.Run The word in 'Alarmtestfile'(see at the sftp(user:support,catalogue:/ALS script)) named 'A1APA000 电动主给水泵系统002 05.doc'

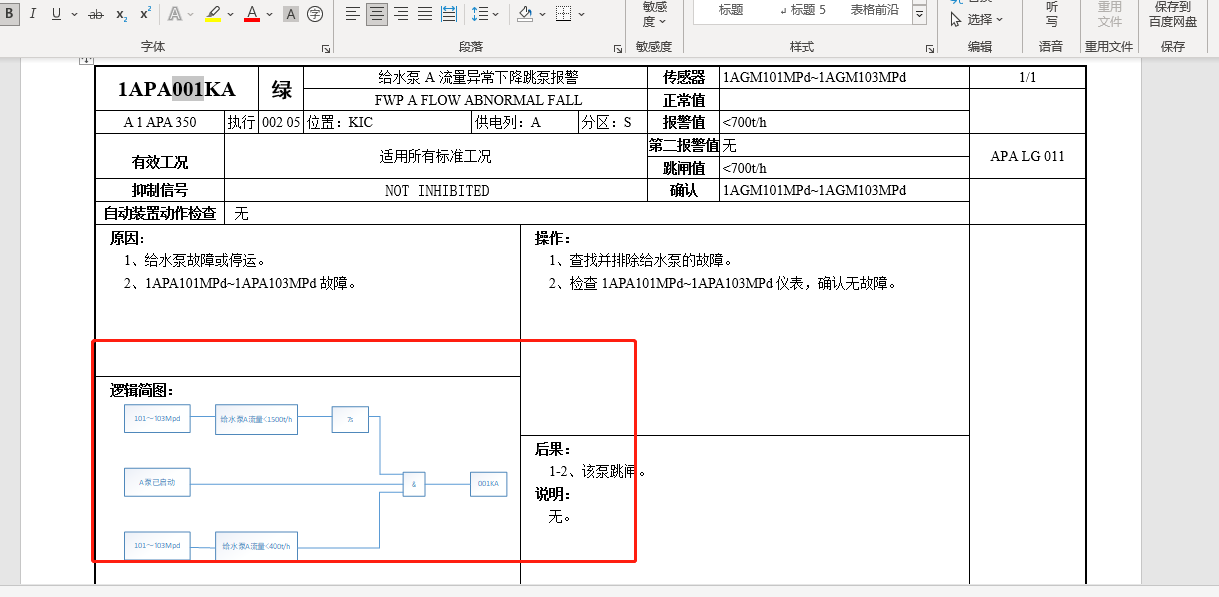

2.The alarm sheet 1APA001KA 1APA002KA 1APA003KA ,there logic dicgram is not correct. see the attachment.

Zhouxuan_20220622_validate_ok_Als Tool 1.2.2

Edit attached files
word.png (53.9 KB) word.png zhouxuan, 06/02/2022 11:46 AM Delete
general.png (25.9 KB) general.png zhouxuan, 06/02/2022 11:46 AM Delete

History

#1 Updated by hwyang over 3 years ago

  • Status changed from Reserved to Opened
  • Assignee changed from hwyang to zzy
  • Priority changed from Minor to Major

#2 Updated by Anonymous over 3 years ago

  • Status changed from Opened to Completed

#3 Updated by zhouxuan over 3 years ago

  • Description updated (diff)
  • Status changed from Completed to Validated
  • Additional info. set to Zhouxuan_20220622_validate_ok_Als Tool 1.2.2
