Bug #484
Als Tool ：The generated alarm card picture is inconsistent with the document
Start date:
06/02/2022
Project:
Processing Tool
Product:
Processing Tool
Observer:
Observation Phase:
System validation
Visibility:
Internal
Scope:
Software
Site:
China_Atos
Sender:
Sender V&V
External Reference:
Validation version:
State justification:
Additional info.:
Zhouxuan_20220701_validate_ok_1.2.5
Delivered version:
Description
The generated alarm card picture is inconsistent with the document
1.一匹文档同时被执行（其中4个文档名不同，但是里面都有1CRF013KA报警卡，并且都为1/1）(此报警卡为例，该文档的其他报警卡也是相同问题)

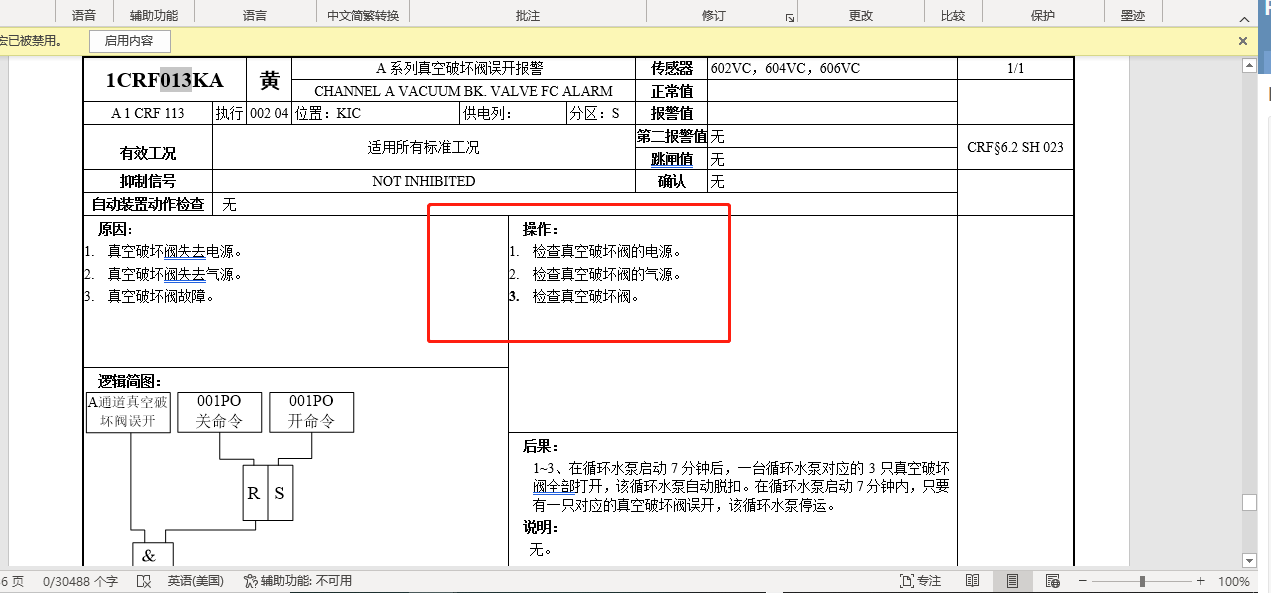

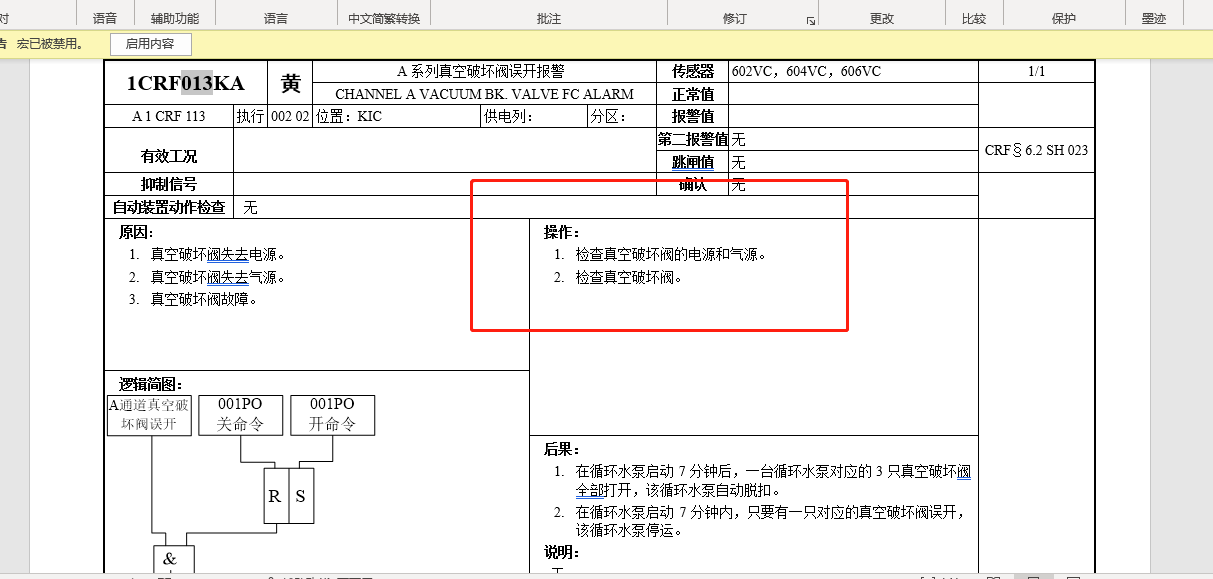

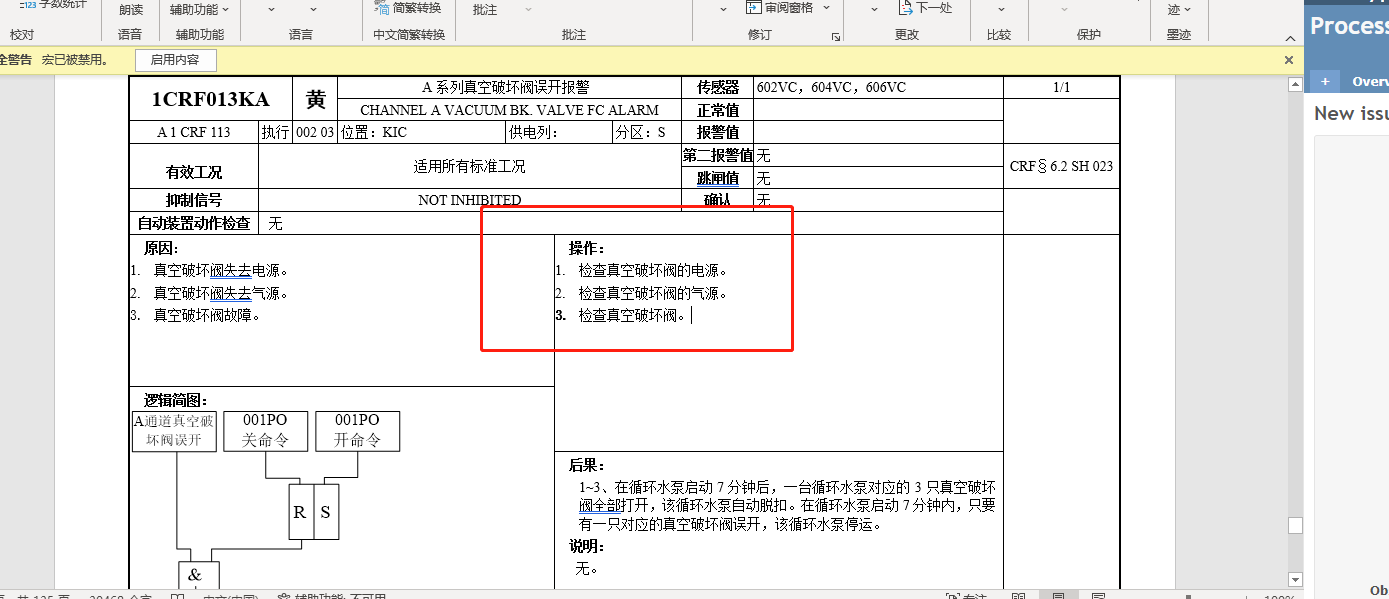

2.文档：HN1-CRF-TPOPAR-0001（A1CRF000） 循环水过滤系统 REV003.doc A1CRF000 循环水过滤系统 REV002 02.doc A1CRF000 循环水过滤系统 REV002 04
.doc A1CRF000 循环水过滤系统 REV002 03.doc 在 'Alarmtestfile'(see at the sftp(user:support,catalogue:/ALS script))
3.这四个文档生成一个ilv和一个逻辑简图

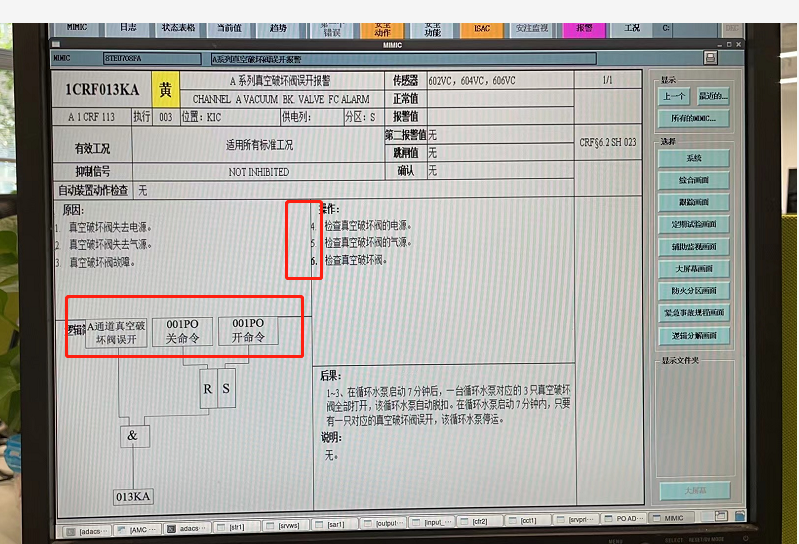

4.在adacs上查看，逻辑简图超边界，并且发现报警卡照片内容与所有word都不匹配，可看bug1.png所圈内容。
zhouxuan_reopen_20220622_1.2.2

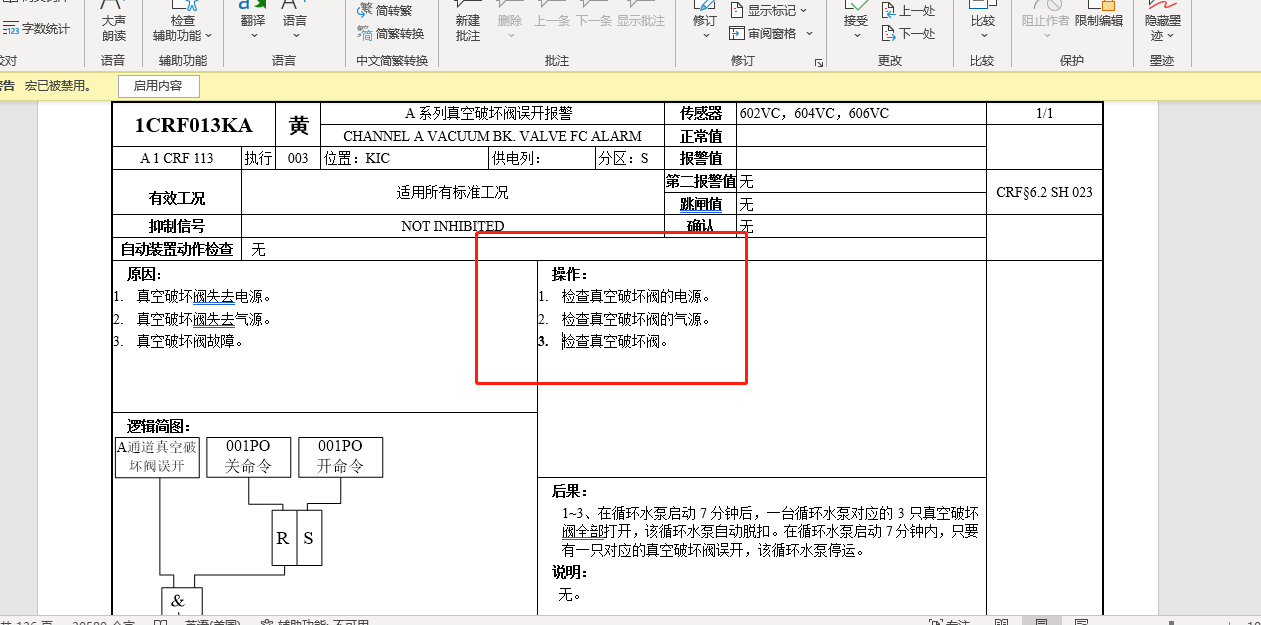

在1.2.2版本可得生出的报警卡图片根据版本看出来是在003上，由此可确定是文档‘HN1-CRF-TPOPAR-0001（A1CRF000） 循环水过滤系统 REV003.doc’生成的，但是对比word文档和生成的报警卡图片内容是不一致的
Zhouxuan_20220701_validate_ok_1.2.5
History
#1 Updated by zhouxuan over 3 years ago
- Description updated (diff)
#2 Updated by hwyang over 3 years ago
- Status changed from Reserved to Opened
- Priority changed from Minor to Major
#3 Updated by Anonymous over 3 years ago
- Status changed from Opened to Completed
#4 Updated by zhouxuan over 3 years ago
- Description updated (diff)
- Status changed from Completed to Opened
#5 Updated by zhouxuan over 3 years ago
- Assignee changed from hwyang to zzy
#6 Updated by Anonymous over 3 years ago
- Status changed from Opened to Completed
#7 Updated by zhouxuan over 3 years ago
- Description updated (diff)
- Status changed from Completed to Opened
#8 Updated by zhouxuan over 3 years ago
- Description updated (diff)
- Status changed from Opened to Validated
- Additional info. set to Zhouxuan_20220701_validate_ok_1.2.5
