Bug #505

Als Tool:The generated logic diagram is incomplete

Added by zhouxuan over 3 years ago. Updated over 3 years ago.

Status:
Abandoned
Priority:
Major
Assignee:
zzy
Start date:
06/21/2022
Project:
Processing Tool
Product:
Processing Tool
Observer:
zhouxuan
Observation Phase:
System validation
Visibility:
Internal
Scope:
Software
Site:
China_Atos
Sender:
Sender V&V
External Reference:
Validation version:
State justification:
Additional info.:
Delivered version:
Quote

Description

The generated logic diagram is incomplete
1.Run the 'HN1-KRT-TPOPAR-0001(A1KRT000) 辐射监测系统 REV003'

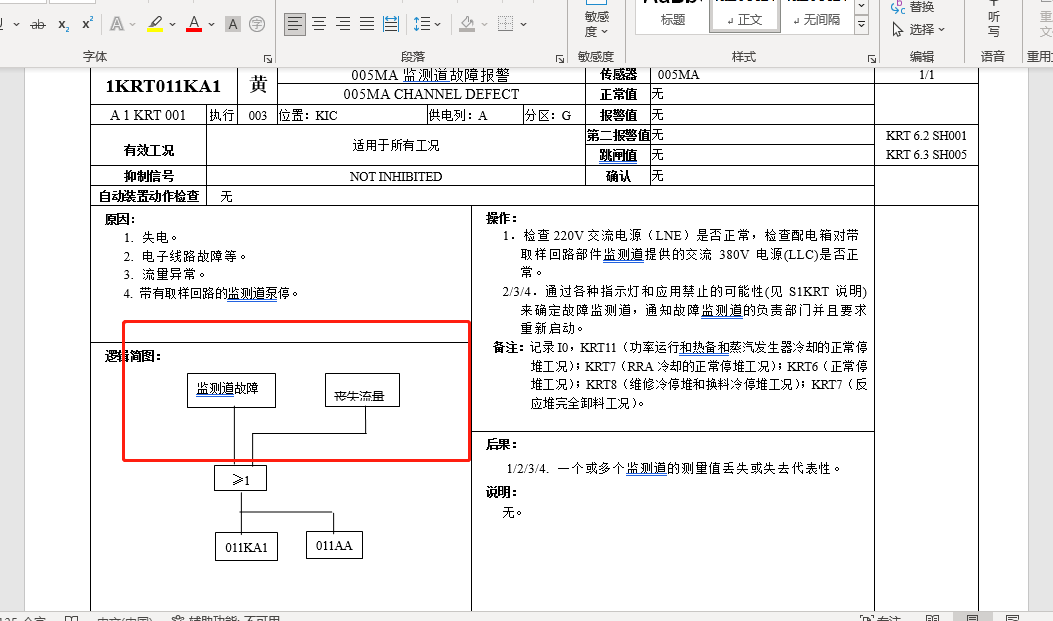

2.The 1KRT011KA1 logic diagram see bug1.png

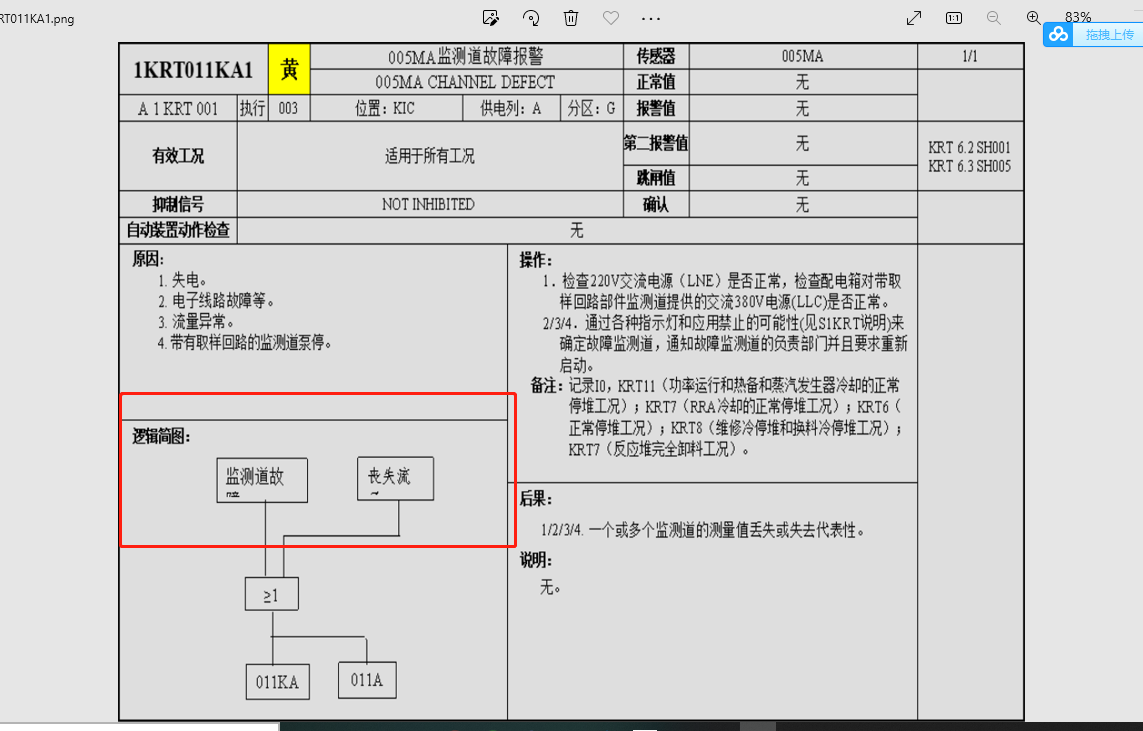

3.The generated picture see bug2.png
4.Find that the logic diagram is different

zhouxuan_reopen_0630_1.2.5
可见下面两个文档，生成的逻辑见图与word上的逻辑见图有差距，不完整
A1ETY000 安全壳内大气监测系统 Rev002 00
A1ETY000 安全壳内大气监测系统 Rev002 01
